Did you know that TeraFlex also offers rear disc brake conversions for older Jeep models including Dana, Chrysler, and our Tera CRD60 Rear Axles? These kits are designed to increase stopping power over the stock braking system. A must when you begin adding larger wheels and tires as well as other off-road gear and accessories.

Rear Disc Brake Conversion Kits

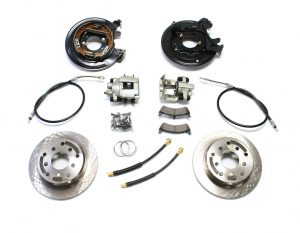

4354425 – TJ: Rear Disc Brake Conversion Kit w/ E-Brake Cables

Upgrade your Jeep’s stock rear drum brakes to disc brakes with one of these high-quality TeraFlex Rear Disc Brake Conversion Kits. These bolt-on kits feature an internal drum parking brake for outstanding holding power compared to other disc brake conversion kits.

INCLUDES: brake calipers w/ pads (rear), smooth rotors (rear), internal drum parking brakes, disc brake hose kit (rear: TJ, YJ/XJ, Dana/Chrysler), emergency brake cables (TJ), all necessary hardware.

APPLICATIONS

TJ | LJ: Rear Disc Brake Conversion Kit w/ E-Brake Cables — FITS: TJ Wrangler/Unlimited
YJ | XJ: Rear Disc Brake Conversion Kit — FITS: 1987–1990 YJ Wrangler and 1984-1990 XJ Cherokee: w/ non-C-clip or Dana 44 through 1988. Does NOT fit CJ, Commando, or other Jeep models
1991–2006 Dana | Chrysler: Rear Disc Brake Conversion Kit — FITS: 1991–2006 Jeep factory rear axles including Dana 35 C-clip, Dana 44, Chrysler 8.25”
Tera CRD60: Rear Disc Brake Conversion Kit — FITS: Tera CRD60, Ford 8.8”, Ford 9” w/ “Big Ford” (new style only) housing ends

REPLACEMENT PARTS

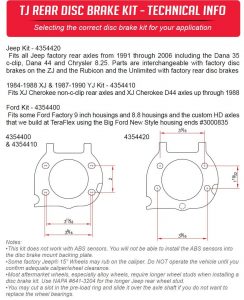

Jeep: Rear Disc Brake Conversion Guide 1

Disc Brake Caliper – Rear w/ 46mm Piston – Each
Disc Brake Rotor – Smooth – Rear – Each
Brake Pad Kit – Rear Disc Brake Conversion (All 4)
TJ: Disc Brake Hose Kit – Rear
2003–2006 TJ SWB | 1997–2001 XJ: Emergency Brake Cable – Each
TJ | Late Jeep: Brake Preload Spacer – Rear – Each
1987–90 YJ | 1983–88 XJ: Brake Preload Spacer – Rear – Each
Tera CRD60: Brake Preload Spacer – Rear – Each

Brake Accessories

Stainless Steel Braided Brake Line Kits

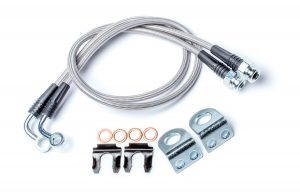

4353310 – JK | TJ 26″ Stainless Steel Braided Brake Line Kit – Front

Our DOT-approved TeraFlex Stainless Steel Braided Brake Line Kits prevent line expansion to maintain a firm pedal feel. All brake lines are longer than stock to work with our lift kits. Stainless brake lines are made to MVSS-1006 specifications. Sold in pairs with all mounting hardware.

TJ: 26” Stainless Steel Braided Brake Line Kit – Front & Rear
JK | TJ: 26” Stainless Steel Braided Brake Line Kit – Front
TJ: 26” Stainless Steel Braided Brake Line Kit – Rear

Emergency Brake Cables

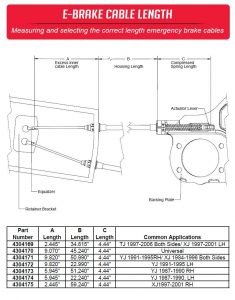

Jeep Emergency Brake Cable Length Guide 1

Replace your old worn-out emergency brake cables with a new TeraFlex Emergency Brake Cable. These kits work with TeraFlex Rear Disc Brake Conversion Kits as well as late model factory Jeep disc brakes — NOT compatible with factory Jeep rear drum brakes.

Sold individually — requires two for a rear axle. Use the E-Brake Cable Chart to select the e-brake cable for your specific application.

2003–2006 TJ | LJ: Emergency Brake Cable – Left or Right
TJ | LJ Rear Disc Conversion: Emergency Brake Cable – Left or Right
1997–2001 XJ Cherokee: Emergency Brake Cable – Left
1997–2001 XJ Cherokee: Emergency Brake Cable – Right
1991–2006 Dana | Chrysler Rear Disc Conversion: Emergency Brake Cable – Left or Right
1991–1995 YJ: Emergency Brake Cable – Left
1991–1995 YJ: Emergency Brake Cable – Right
1987–1990 YJ: Emergency Brake Cable – Left
1987–1990 YJ: Emergency Brake Cable – Right
1984–1996 XJ: Emergency Brake Cable – Left or Right
Universal: Emergency Brake Cable

Brake Line Anchor Kits

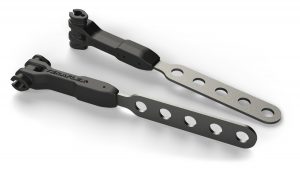

1101356 – Brake Line Anchor Kit w/ 5 Mounting Holes – Front or Rear

TeraFlex’s universal Brake Line Anchors properly locate your brake line for safe tire clearance during full suspension movement. The secure mounting eliminates unnecessary movement of the flexible brake line and/or ABS/wheel speed sensor.

Brake Line Anchor Kit w/ 5 Mounting Holes
Brake Line Anchor Kit w/ 1 Mounting Hole
Brake Line Anchor Kit – Rear

Wheel Accessories

1.25″ Wheel Offset Adapter Kits

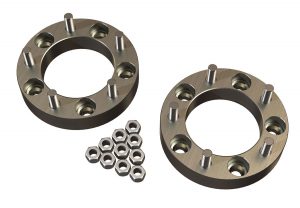

1055020 – 1.25″ Wheel Offset Adapter Kit – 5×5.5″ to 5×5.5″– Pair

These TeraFlex 1.25” Wheel Offset Adapter Kits provide a 1.25” offset for factory wheels for additional tire clearance when turning. Works with 8” wide or wider wheels with 4” or less backspacing. Made from 6061-T6 aluminum.

INCLUDES: (2) wheel offset adapters w/ pressed-in wheel studs, (10) spacer lug nuts.

TJ: 1.25” Wheel Offset Adapter Pair – 5×4.5” to 5×4.5”
JK: 1.25” Wheel Offset Adapter Pair – 5×5” to 5×5″
1.25” Wheel Offset Adapter Pair – 5×5.5” to 5×5.5”
TJ: 1.25” Wheel Offset Adapter Pair – 5×4.5” to 5×5”
JL | JT: 1.75″ Wheel Offset Adapter Pair – 5×5″ to 5×5″

Spline Drive Lug Nut Kits

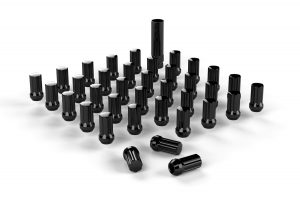

1051916 – Spline Drive Lug Nut Kit – 9-16″x18 – Black – 36 pcs

Spline drive lug nuts maximize thread engagement, increase wheel security, and improve appearance. Works with aftermarket wheels requiring a smaller outside diameter lug nut. Includes a splined security key.

Available in either a 23-piece set (plus security key with 1/2” x 20 thread for factory 5-lug wheel studs or a 36-piece set (plus security key) with 9/16” x 18 thread for common 8-lug wheel studs.

Spline Drive Lug Nut Kit – 1/2”x20 – Chrome – 23 Pcs
Spline Drive Lug Nut Kit – 1/2”x20 – Black – 23 Pcs
Spline Drive Lug Nut Kit – 9/16”x18 – Chrome – 36 Pcs
Spline Drive Lug Nut Kit – 9/16”x18 – Black – 36 Pcs

— — — SKUs, components, and pricing are subject to change. See the website descriptions for the latest information. — — —

Check out all our TeraFlex Suspensions Lifts, Off-Road Performance Parts, and Jeep Accessories HERE!

— Words by Jason Udy
