High Steer Systems (4–6” Lift)

The TeraFlex TJ: Pro LCG Dana 30/44 High Steer System addresses many front-end steering issues associated with lifted TJ Wrangler/Unlimited models. This system beefs up the steering components of the Dana 30 or Rubicon Dana 44 front axle, helps maximize ground clearance, and corrects steering geometry for superior highway drivability.

Highly recommended for TJ Wrangler/Unlimited models with 4” or more lift. NOT an all-inclusive kit — may require additional modifications. Also fits ZJ Grand Cherokee, XJ Cherokee, and MJ Comanche with Dana 30 front axles — REQUIRES additional modifications.

The High Steer HD Aluminum Tie Rod and High Steer HD Aluminum Drag Link convert the TJ’s stock steering to a cross steering or a flipped steering setup. “Flipping” the HD Drag Link

over the Knuckle helps eliminate front-end shimmy, bump steer, and other alignment issues. The High Steer Sway Bar Mounts raise the Front Sway Bar up for more clearance for new High Steer components, while the Steering Stabilizer Mount adapts a 9550 VSS Steering Stabilizer to the hexagonal 6061-T6 aluminum tubing used in our HD Drag Link and HD Tie Rod.

Our complete Pro LCG Dana 30/44 High Steer System combines our Dana 30/44 High Steer Knuckle with our High Steer HD Aluminum Tie Rod Kit, High Steer HD Aluminum Drag Link Kit, High Steer Sway Bar Mount Kit, 9550 VSS Steering Stabilizer Mount Kit, and Front Sway Bar Quick Disconnect Kit. Most replacement components are available separately.

Compatible with all factory and aftermarket axle shafts, ball joints, and wheel hubs. Does not affect the operation of ABS.

FEATURES/BENEFITS

• Installation DOES NOT require any cutting or removal of factory bracketry
• Check out the included parts for a full list of Features & Benefits!

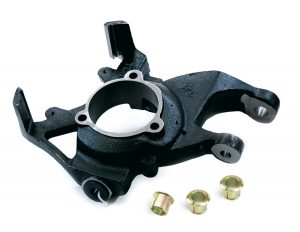

TJ: Dana 30/44 High Steer Knuckle w/ 3 Tapered Inserts:

• Cast from HD ductile iron
• Reinforces key section areas prone to stress and deflection
• Maintains correct steering geometry angles for superior highway drivability
• Provides HD solution for several weak vulnerabilities found in the stock axle steering configuration
• Increases Tie Rod ground clearance by more than 1-1/8” to reduce Tie Rod damage and bending

TJ: High Steer HD Aluminum Tie Rod Kit – Offset Taper Ends:

• Constructed from 5” hexagonal 6061-T6 aluminum — higher specific strength than 1018 steel
• Yield strength of 45,000 lbs., yet 1/3 the weight of steel
• Aluminum construction deflects 3x further than steel allowing for a return to its original shape
• Hexagon shape allows tightening of jam nuts w/ 5” wrench
• Offset Tie Rod Ends increase differential cover clearance at full turn

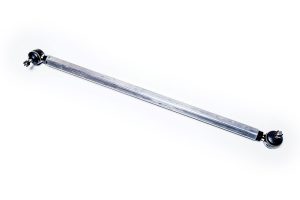

TJ: High Steer HD Aluminum Drag Link Kit – Stock Taper Ends:

• Bolts directly to new High Steer Knuckle
• Can be used to convert to cross steering or over the Knuckle for flipped steering
• Helps eliminate front-end shimmy and other alignment issues
• Extruded Drag Link eliminates excess flex during binding and high load steering maneuvers
• Constructed from 5” hexagonal 6061-T6 aluminum — higher specific strength than 1018 steel
• Yield strength of 45,000 lbs., yet 1/3 the weight of steel
• Aluminum construction deflects 3x further than steel allowing for a return to its original shape
• Hexagon shape allows tightening of jam nuts w/ 5” wrench
• Tie Rod Ends feature 4140 Chromoly ball/stud and 1045 carbon steel housing

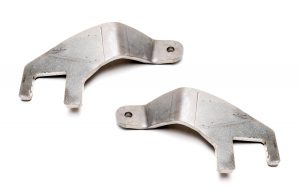

TJ: High Steer Sway Bar Mount Kit:

• Raises and relocates Sway Bar Mounts to give clearance for custom high steer components
• Mounts are laser cut and formed from 3/8” steel for durability and strength
• Includes left-side and right-side mounts

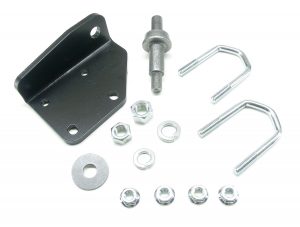

TJ: 9550 VSS Steering Stabilizer Mount Kit:

• Works w/ 5” hexagonal 6061-T6 aluminum Tie Rod used in our High Steer Systems
• Combine w/ 9550 VSS Steering Stabilizer (# 1513001) to complete your steering system

TJ: Front Sway Bar Quick Disconnect Kit:

• Sway Bar Links quickly disconnect and swing up out of the way for unrestricted axle articulation during off-roading
• Links provide immediate reaction during sway bar loading to eliminate excess play while connected for street use
• Improved lateral control and steering response compared to the stock rubber Sway Bar Link Bushings
• Upper End has a greaseable OEM quality polyurethane shoulder ball and socket for silent operation and long-term durability
• Lower Link End features a large polyurethane ball that slides over a stainless-steel pin for easy sway bar link removal

VEHICLE(S):

• TJ Wrangler (short wheelbase) including Rubicon
• LJ Wrangler Unlimited including Rubicon
• ZJ Grand Cherokee
• XJ Cherokee
• MJ Comanche

AXLE(S)

• Dana 30 front axle
• Rubicon Dana 44 front axle

SPECS

• Lift Height: 4–6”

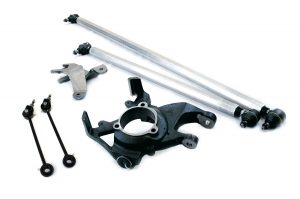

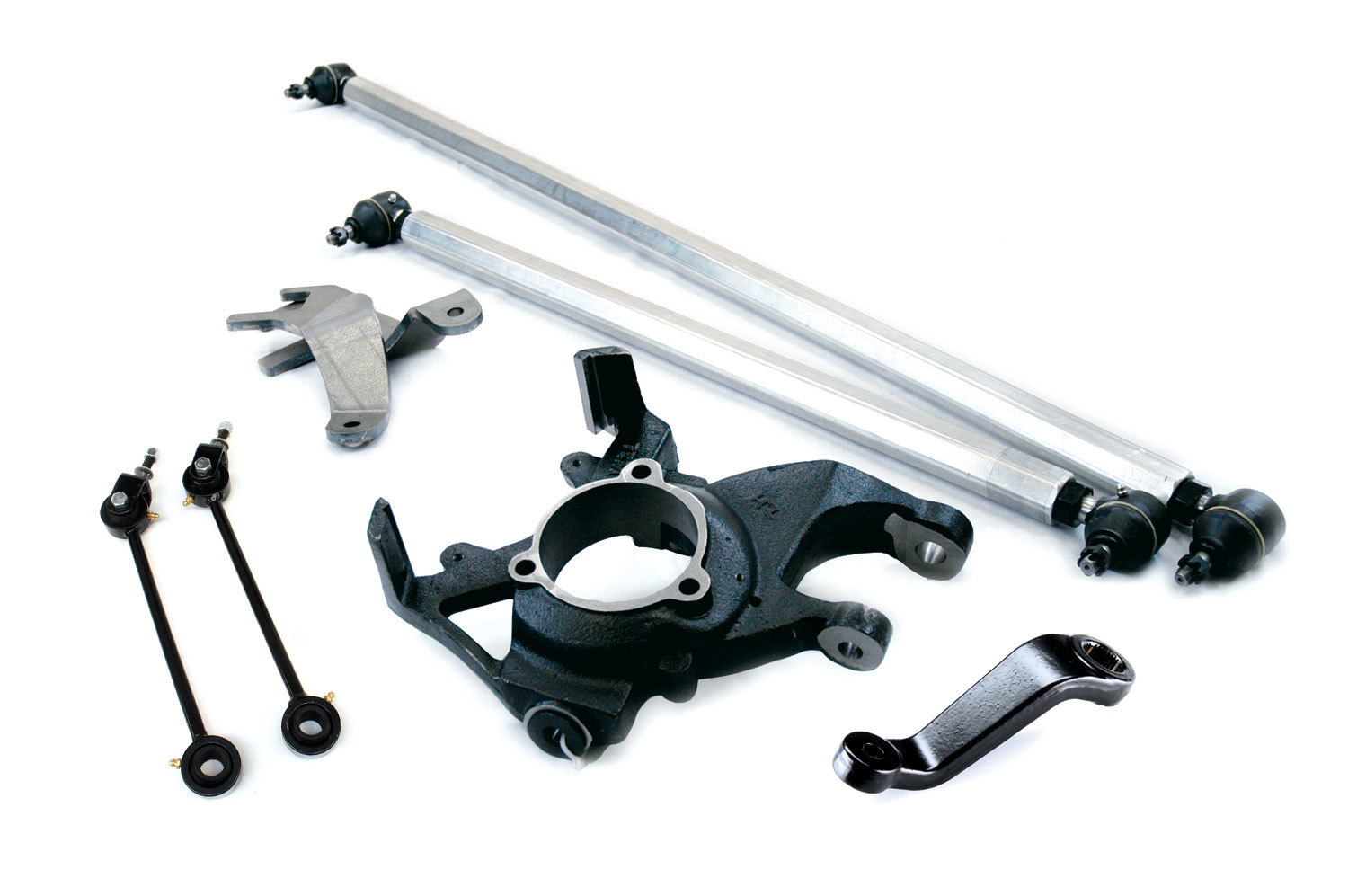

Pro LCG Dana 30/44 High Steer System

Includes: Dana 30/44 High Steer Knuckle, High Steer HD Aluminum Tie Rod Kit, High Steer HD Aluminum Drag Link Kit, Drop Pitman Arm, High Steer Sway Bar Mount Kit, 9550 VSS Steering Stabilizer Mount Kit, Front Sway Bar Quick Disconnect Kit.

COMPATIBLE LIFT KITS

• 5″ Pro LCG Long Arm Suspension System
• 4″ Pro LCG Long Arm Suspension System

SKU(S)

• TJ: Pro LCG Dana 30/44 High Steer System

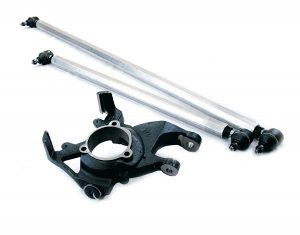

Dana 30/44 High Steer System

Includes: Dana 30/44 High Steer Knuckle, High Steer HD Aluminum Tie Rod Kit, High Steer HD Aluminum Drag Link Kit.

COMPATIBLE LIFT KITS

• 4″ Enduro LCG Long Arm Suspension System
• 4″ Suspension System w/ 8 Short Control Arms
• 4″ Suspension System w/ 4 Short Control Arms
• 4″ Coil Spring Base Lift Kit

SKU(S)

• TJ: Dana 30/44 High SteerSystem

SUBASSEMBLIES & COMPONENTS

• TJ: Dana 30/44 High Steer Knuckle w/ 3 Tapered Inserts (4–6” Lift) (Also FITS: TJ Wrangler/Unlimited and Rubicon | YJ Wrangler | ZJ Grand Cherokee | XJ Cherokee | MJ Comanche)
• TJ: High Steer HD Aluminum Tie Rod Kit – Offset Taper Ends
• TJ: High Steer HD Aluminum Drag Link Kit – Stock Taper Ends
• TJ: High Steer Sway Bar Mount Kit (4–6” Lift
• TJ: High Steer Sway Bar Mount – Left (4–6” Lift)
• TJ: High Steer Sway Bar Mount – Right (4–6” Lift)
• TJ: 9550 VSS Steering Stabilizer Mount Kit
• TJ: 8″ Front Sway Bar Quick Disconnect Kit (0–2″ Lift)
• TJ | YJ: Drop Pitman Arm

High Steer HD Aluminum Tie Rod Kit | High Steer HD Aluminum Drag Link Kit

Upgrade your stock steering system with the TeraFlex TJ: High Steer HD Aluminum Tie Rod Kit and High Steer HD Aluminum Drag Link Kit. These components convert the TJ Wrangler/Unlimited model’s stock steering to a cross steering or a flipped steering setup.

“Flipping” the High Steer HD Aluminum Drag Link over the Knuckle helps eliminate front-end shimmy, bump steer, and other alignment issues.

REQUIRES the Dana 30/44 High Steer Knuckle, High Steer HD Aluminum Tie Rod Kit, and High Steer HD Aluminum Drag Link Kit.

FEATURES/BENEFITS

TJ: High Steer HD Aluminum Tie Rod Kit – Offset Taper Ends:

• Constructed from 5” hexagonal 6061-T6 aluminum — higher specific strength than 1018 steel
• Yield strength of 45,000 lbs., yet 1/3 the weight of steel
• Aluminum construction deflects 3x further than steel allowing for a return to its original shape
• Hexagon shape allows tightening of jam nuts w/ 5” wrench
• Offset Tie Rod Ends increase differential cover clearance at full turn

TJ: High Steer HD Aluminum Drag Link Kit – Stock Taper Ends:

• Bolts directly to new High Steer Knuckle
• Can be used to convert to cross steering or over the Knuckle for flipped steering
• Helps eliminate front-end shimmy and other alignment issues
• Extruded Drag Link eliminates excess flex during binding and high load steering maneuvers
• Constructed from 5” hexagonal 6061-T6 aluminum — higher specific strength than 1018 steel
• Yield strength of 45,000 lbs., yet 1/3 the weight of steel
• Aluminum construction deflects 3x further than steel allowing for a return to its original shape
• Hexagon shape allows tightening of jam nuts w/ 5” wrench
• Tie Rod Ends feature 4140 Chromoly ball/stud and 1045 carbon steel housing

SKU(S)

• TJ: High Steer HD Aluminum Tie Rod Kit – Offset Taper Ends
• TJ: High Steer HD Aluminum Drag Link Kit – Stock Taper Ends

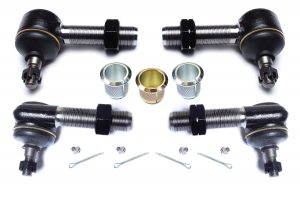

High Steer Tie Rod End & Drag Link End Kit

The complete TeraFlex TJ: High Steer Tie Rod End & Drag Link End Kit w/ Insert Sleeves includes all of the components needed to raise or “flip” the tie rod over the knuckle to increase ground clearance an additional 3″ for added tie rod protection. The kit can also be used to rebuild an existing High Steer HD Aluminum Tie Rod Kit and High Steer HD Aluminum Drag Link Kit.

All our individual Tie Rod Ends utilize the stronger Dodge 1-ton joint end. The stock taper Tie Rod End fits the Dana 30 axle, while the larger taper Tie Rod End fits the Dana 60 or Tera CRD60 axle.

Includes: (2) Tie Rod Ends (Offset Stock Taper – 7/8″-18 ), (2) Drag Link Ends (Stock Taper – 7/8″-18),  (3) Stock Tapered Inserts.

• TJ: High Steer Tie Rod End & Drag Link End Kit w/ Insert Sleeves (set of 4)

INDIVIDUAL COMPONENTS

• TJ: Drag Link End – Stock Taper – 7/8″ x 18 – Left-Hand Thread
• TJ: Drag Link End – Stock Taper – 7/8″ x 18 –  Right-Hand Thread
• TJ: Tie Rod End – Offset Stock Taper – 7/8″ x 18 – Left-Hand Thread
• TJ: Tie Rod End – Offset Stock Taper – 7/8″ x 18 – Right-Hand Thread
• TJ: Tie Rod End – Large Taper – 7/8″ x 18 – Left-Hand Thread
• TJ: Tie Rod End – Large Taper – 7/8″ x 18 – Right-Hand Thread
• TJ: Tie Rod End – Offset Large Taper – 7/8″ x 18 – Left-Hand Thread
• TJ: Tie Rod End – Offset Large Taper -– 7/8″ x 18 – Right-Hand Thread
• TJ: Boot (Tie Rod End or Drag Link End)

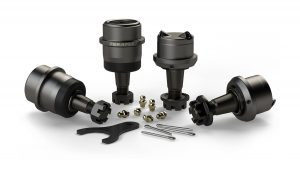

Dana 30/44 HD Ball Joint Kit

TeraFlex TJ: Dana 30/44 HD Ball Joints are engineered to handle the increased load caused by oversized tires and offset wheels. Fits select Jeep models with Dana 30 or factory Rubicon Dana 44 front axles.

FEATURES/BENEFITS

All:

• Heat-treated 4140 Chromoly ball studs
• Heat-treated 1045 carbon steel housing and threaded retaining ring
• Magnesium Phosphate coating provides corrosion resistance and decreases friction

Upper Ball Joint:

• Extremely hard sintered wear bushings to handle extreme side load demands w/out failure
• Factory-style serrated flange nut and grease fitting

Lower Ball Joint:

• Hard alloy tool steel slotted wear plate for ball stud to socket wear protection
• Wear plate features dual helical grease channels for increased flow through the entire joint ensuring longevity and predictable operation
• Factory-style serrated flanged castle nut
• Low-profile single lip dust seal prevents contaminants
• 30mm (1.18”) adjustable ball stud for accurate initial and future preload adjustments using simple hand tools
• 2 grease zerk fittings allow greasing access from either side

VEHICLE(S)

• TJ Wrangler (short wheelbase) including Rubicon
• LJ Wrangler Unlimited (long wheelbase) including Rubicon
• YJ Wrangler
• ZJ Grand Cherokee
• XJ Cherokee
• MJ Comanche

APPLICATIONS

• TJ | LJ | YJ | ZJ | XJ | MJ: Dana 30/44 Ball Joint Kit w/out Knurl – 2 Upper & 2 Lower
• TJ | LJ | YJ | ZJ | XJ | MJ: Dana 30/44 Ball Joint Kit w/ Knurl – 2 Upper & 2 Lower
• TJ | LJ | YJ | ZJ | XJ | MJ: Dana 30/44 Ball Joint Kit w/out Knurl – 1 Upper & 1 Lower
• TJ | LJ | YJ | ZJ | XJ | MJ: Dana 30/44 Ball Joint Kit w/ Knurl – 1 Upper & 1 Lower

UNIVERSAL

TJ Wrangler (short wheelbase) including Rubicon

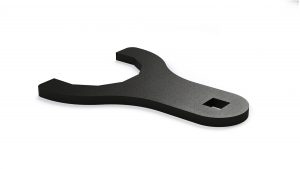

• • Lower Ball Joint Preload Adjustment Tool – Frog Eyes
  • Lower Ball Joint Preload Adjustment Tool – Threaded Top (old style)

— — — SKUs, components, and pricing are subject to change. See the website descriptions for the latest information. — — —

Check out all our TeraFlex Suspensions Lifts, Off-Road Performance Parts, and Jeep Accessories HERE!

— Words by Jason Udy
