Preset Short Control Arms (2.5–3” Lift)

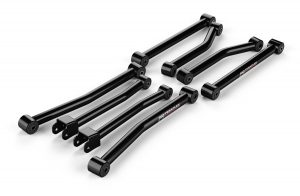

Sport Control Arms
TeraFlex JK: Sport Control Arms provide maintenance-free and dependable performance on JK Wrangler/Unlimited models with 2.5–3” lifts. Bolts to the factory control arm mounting brackets.
High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality.
Can be added to any existing suspension lift.
FEATURES/BENEFITS
JK Sport Control Arms:
- High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH (noise, vibration, and harshness) damping and ride quality
- Preset Sport Control Arms balance front caster angle and pinion angles as well as optimize rear pinion angles and tune anti-squat geometry for proper suspension alignment on 2.5–3″ lift kits
- Sport Control Arms are constructed from durable 42mm x 4mm wall DOM tube for maximum strength
Preset Control Arms (all):
- Re-centers axles in the wheel well for proper suspension movement
- Full range of movement will not restrict articulation or flex off-road
- Zero maintenance joints for smooth quiet flex
- Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
- Bolts to the factory control arm mounting brackets
- Install and drive simple bolt-on installation — no welding required
- TeraFlex Lifetime Warranty against defects
| Application | Preset Short Control Arms | ||||
| Vehicle | Lift Height | Sport | Tube Diameter & Wall |
Stock Length |
Preset Length |
| 2007–2018 JK Wrangler/Unlimited |
2.5–3″ Lift | Kit – 8-Arm (All) | |||
| Kit – 4-Arm (FL & RU) | |||||
| Pair – Front Upper | 42mm x 4mm | 18-3/4” | 18-3/4” | ||
| Pair – Front Lower | 42mm x 4mm | 22-5/8” | 22-13/16” | ||
| Pair – Rear Upper | 42mm x 4mm | 17-7/16” | 17-11/16” | ||
| Pair – Rear Lower | 42mm x 4mm | 19-3/4” | 19-15/16” | ||
Adjustable Short Control Arms (2–4” Lift)
TeraFlex adjustable JK: Short Control Arms provide complete alignment adjustability and dependability for maximum performance on JK Wrangler/Unlimited models with 2–4” lifts. Bolts to the factory control arm mounting brackets.
Can be added to any existing suspension lift.
FEATURES/BENEFITS
JK: Short Control Arms (Alpine/IR):
- Adjustable Short Control Arms balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 2–4″ lift kits
- Short Control Arms are constructed from durable 42mm x 4mm wall DOM tube for maximum strength
- Bolts to the factory control arm mounting brackets
- Install and drive simple bolt-on installation — no welding required
Adjustable Control Arms (all):
- Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
- Full range of movement will not restrict articulation or flex off-road
- Zero maintenance forged threaded joints for smooth quiet flex
- Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
- Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
- TeraFlex Lifetime Warranty against defects

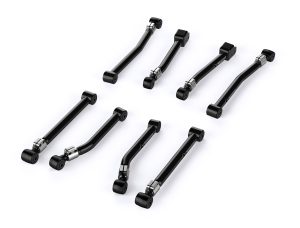

Alpine Short Arms
Alpine Short Arms feature high-quality, dependable, maintenance-free, factory-style bushings that provide excellent NVH (noise, vibration, and harshness) damping and ride quality.
FEATURES/BENEFITS
Alpine Control Arms (Short / Long):
- High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality

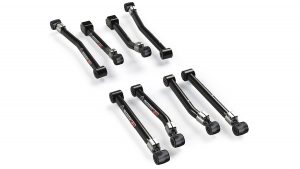

Alpine IR Short Arms
Alpine IR Short Arms feature our innovative, maintenance-free IR Bushings provide unrestricted rotation and flex as well as excellent NVH (noise, vibration, and harshness) damping to improve on- and off-road ride quality and performance.
FEATURES/BENEFITS
Alpine IR Control Arms (Short / Long):
- Innovative, maintenance-free IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping to improve on- and off-road ride quality and performance
| Application | Adjustable Short Control Arms | ||||||
| Vehicle | Lift Height | Alpine | Alpine IR | Tube Diameter & Wall |
Stock Length |
Minimum Length |
Maximum Length |
| 2007–2018 JK Wrangler/Unlimited |
2–4″ Lift | Kit – 8-Arm (All) | Kit – 8-Arm (All) | ||||
| Pair – Front Upper | Pair – Front Upper | 42mm x 4mm | 18-3/4” | 18-1/2” | 19-3/4” | ||
| Pair – Front Lower | Pair – Front Lower | 42mm x 4mm | 22-5/8” | 22-3/4” | 24” | ||
| Pair – Rear Upper | Pair – Rear Upper | 42mm x 4mm | 17-7/16” | 17-5/8” | 18-7/8” | ||
| Pair – Rear Lower | Pair – Rear Lower | 42mm x 4mm | 19-3/4” | 19-3/4” | 21” | ||

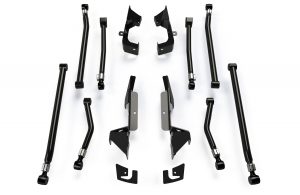

Adjustable Long Control Arms & Long Arm Brackets (3–6” Lift)
TeraFlex adjustable JK: Long Control Arms and Long Arm Brackets provide complete alignment adjustability and dependability for maximum performance on JK Wrangler/Unlimited models with 3–6” lifts.
CAD-engineered TeraFlex JK: Long Arm Brackets are designed for maximum strength. By streamlining the frame-end mounting points, we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance.
Can be added to any existing suspension lift.
FEATURES/BENEFITS
JK: Long Control Arms (Alpine/IR) and Long Arm Brackets:
- Adjustable Long Control Arms and Long Arm Brackets balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3–6” lift kits
- Long Control Arms are constructed from durable 42mm x 4mm (upper) or 50mm x 5mm (lower) wall DOM tube for maximum strength
- On higher lifts, Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during extreme droop and shock load transferred through the Long Control Arms
- Long Arm Brackets are gusseted and reinforced for superior strength w/ reduced NVH compared to other long arm kits
- Long Arm Brackets feature a premium triple-stage powder coating that provides superior durability and corrosion resistance
Adjustable Control Arms (all):
- Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
- Full range of movement will not restrict articulation or flex off-road
- Zero maintenance forged threaded joints for smooth quiet flex
- Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
- Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
- TeraFlex Lifetime Warranty against defects
Alpine Long Arms
Alpine Long Arms feature high-quality, dependable, maintenance-free, factory-style bushings that provide excellent NVH (noise, vibration, and harshness) damping and ride quality.
FEATURES/BENEFITS
Alpine Control Arms (Short / Long):
- High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality
Alpine IR Long Arms
Alpine IR Long Arms feature our innovative, maintenance-free IR Bushings provide unrestricted rotation and flex as well as excellent NVH (noise, vibration, and harshness) damping to improve on- and off-road ride quality and performance.
FEATURES/BENEFITS
Alpine IR Control Arms (Short / Long):
- Innovative, maintenance-free IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping to improve on- and off-road ride quality and performance
| Application | Adjustable Long Control Arms and Long Arm Brackets | ||||||
| Vehicle | Lift Height | Alpine | Alpine IR | Tube Diameter & Wall |
Stock Length |
Minimum Length |
Maximum Length |
| 2007–2018 JK Wrangler/Unlimited |
3–6″ Lift | Arm & Bracket Kit – 8-Arm | Arm & Bracket Kit – 8-Arm | ||||
| Kit – 8-Arm (All) | Kit – 8-Arm (All) | ||||||
| Pair – Front Upper | Pair – Front Upper | 42mm x 4mm | 18-3/4” | 27-3/8” | 28-7/8” | ||
| Pair – Front Lower | Pair – Front Lower | 50mm x 5mm | 22-5/8” | 33-3/4” | 35-1/4” | ||
| Pair – Rear Upper | Pair – Rear Upper | 42mm x 4mm | 17-7/16” | 20” | 21-1/2” | ||
| Pair – Rear Lower | Pair – Rear Lower | 50mm x 5mm | 19-3/4” | 35-3/4” | 37-1/4” | ||
| Long Arm Bracket Kit (All) | |||||||
HD Forged Adjustable Track Bars (0–6” Lift)
Jeep axles experience tremendous amounts of lateral force while driving and/or turning and those effects increase exponentially during off-road driving. TeraFlex JK: HD Adjustable Track Bars withstand these abusive side loads to dramatically improve handling and/or steering response. These Track Bars also allow lateral adjustment of the axle for proper axle alignment as well as cycling through full suspension travel without interfering with other components. Our Rear Track Bar also maximizes rear right spring clearance without interfering with other components.
A must for anyone who takes their rig off-road!
FEATURES/BENEFITS
- HD Forged Adjustable Track Bars are 230% stiffer than factory track bars — making them the strongest track bars on the market!
- Bolts into factory locations — no cutting or welding required
- Front Track Bar works w/ Tera HD Front Axles as well as the Front Upper Track Bar Drop Bracket Kit (# 1953000)
- Rear Track Bar works w/ Tera CRD60 HD Rear Axles as well as our Rear Track Bar Bracket Kits (2.5” Lift: 1954776) (3–6” Lift: 1954777) (2.5” Spacer Lift: # 1954202)
- High-quality, maintenance-free factory-style bushings w/ an additional rate plate for superior handling and responsive control

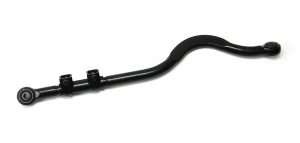

HD Forged Adjustable Track Bar – Front
Our Front HD Adjustable Track Bar is recommended for 2.5–6” lifts. Bolts into factory locations — no cutting or welding required. This is the same Front Track Bar used in our 2.5–6” Suspension Systems (Alpine RT, Alpine CT, Sport ST, and w/ 8 Alpine Short Arms).
- JK: HD Forged Adjustable Track Bar – Front

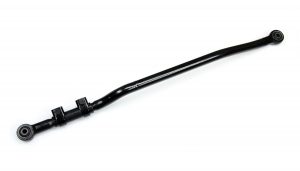

HD Forged Adjustable Track Bar – Rear
Our Rear HD Forged Adjustable Track Bar is recommended for 4–6” lifts. Bolts into factory locations or one of our Rear Track Bar Brackets — no cutting or welding required. This is the same Rear Track Bar used in our 4–6” Alpine RT and Alpine CT Long Arm Suspension Systems.
- JK: HD Forged Adjustable Track Bar – Rear
Accessories: Control Arm | Track Bar

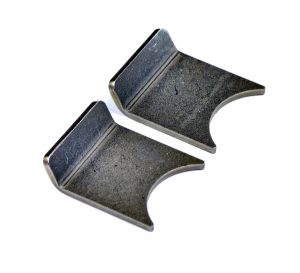

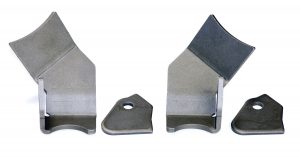

Control Arm Skid Plate Kits – Lower
These weld-on TeraFlex JK: Lower Control Arm Skid Plate Kits strengthen the lower control arm assembly against bending while protecting the arms from damage.
The CNC cut brackets are constructed from 1/4” thick steel.
Available for front lower and rear lower control arms. Sold in pairs with all necessary hardware.
FITS: Sport Control Arms | Alpine Short Arms | Alpine IR Short Arms | Alpine Long Arms | Alpine IR Long Arms

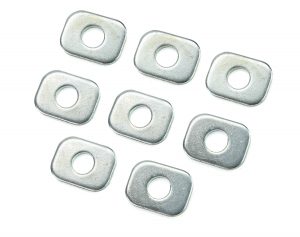

Control Arm Cam Bolt Washer Kit – Front Lower & Rear Upper
Are you tired of your control arms always coming out of adjustment? Stop the constant axle misalignment with the TeraFlex JK: Control Arm Cam Bolt Washer Kit.
These Control Arm Cam Bolt Washers lock the cam bolt into position to eliminate potential movement, which causes axle misalignment. Fits into the factory locations of the front lower and rear upper control arm cam bolt adjusters.
Sold as an 8-pack.
FITS: Sport Control Arms | Alpine Short Arms | Alpine IR Short Arms | Alpine Long Arms | Alpine IR Long Arms
- JK: Control Arm Cam Bolt Washer Kit – Front Lower & Rear Upper

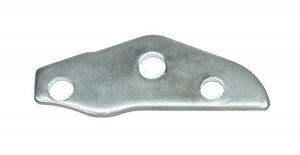

Track Bar Bracket Gusset – Front
Beef up your stock front track bar bracket with the TeraFlex JK: Front Track Bar Bracket Gusset. Prevents “egging out” of the mounting hole. A loose track bar can cause crucial suspension points to bend after long-term heavy use.
- JK: Track Bar Bracket Gusset – Front

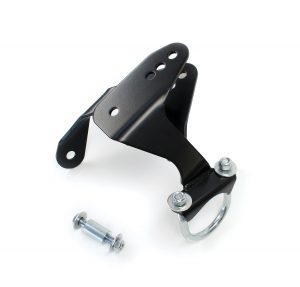

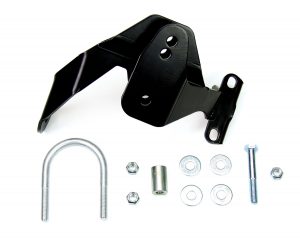

Track Bar Bracket Kits – Rear Lower
TeraFlex JK: Rear Lower Track Bar Bracket Kits correct vehicle roll center, restores factory handling, and reduces body roll in lifted JK Wrangler/Unlimited models.
Multiple mounting locations allow neutral lateral alignment of the rear axle on JK models with 2.5–6” lifts. Bolts to the rear axle track bar mount. Welding is recommended but not required.
- JK: Track Bar Bracket Kit – Rear Lower (2.5” Lift)
- JK: Track Bar Bracket Kit – Rear Lower (3–6” Lift)

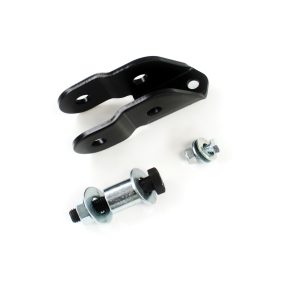

Track Bar Bracket Kit – Rear Upper (2.5” Performance Spacer Lift)
The TeraFlex JK: Rear Upper Track Bar Bracket restores the track bar to its natural position without binding or interference with other components on JK Wrangler/Unlimited models with a 2.5” Performance Spacer Lift Kit.
Bolts to the rear frame track bar mount — no welding required.
- JK: Track Bar Bracket Kit – Rear Upper (2.5” Performance Spacer Lift)
Bushings: Control Arm | Track Bar

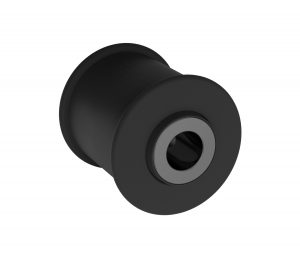

Control Arm Bushing – Sport/Alpine
These high-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH (noise, vibration, and harshness) damping and ride quality.

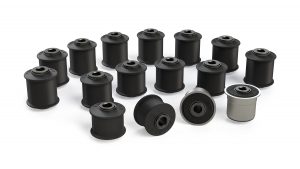

IR Control Arm Bushing – Alpine IR
Use these TeraFlex JK: IR (Independent Rotation) Bushings to upgrade your existing Sport or Alpine Control Arms on your JK Wrangler/Unlimited to the same bushings as our new Alpine IR Control Arms. Can also be used to replace existing IR Bushings.
After years of testing, TeraFlex has perfected our IR (Independent Rotation) Bushings. These innovative bushings are installed in our adjustable short and long Alpine IR Control Arms used in our JL and JK Wrangler/Unlimited and JT Gladiator Alpine RT Suspension Systems.
Although traditional rubber bushings offer quiet operation and satisfactory longevity, their limitations began to surface during off-road driving and extreme articulation. Suspension bushings must twist as well as rotate, which causes suspension bind. The effects worsen as lift height and suspension travel increase.
TeraFlex IR Bushings end the industry-wide struggle to engineer zero maintenance bushings with unrestricted droop. IR Bushings feature an innovative inner sleeve that freely rotates 360 degrees without placing a load on the bushing. The internal contact surfaces of the rotating sleeve feature an extremely tough, hardened bearing surface that is factory lubricated and permanently sealed.
IR Bushings remove bushing bind during suspension compression whether on the highway or the trail. This results in a noticeable ride improvement. Eliminating rotational stress reduces bushing failure. The free movement of the IR Bushing extends its life span.
Existing lift systems can also be upgraded to IR Bushings via our short and long Alpine IR Control Arm Kits. Or upgrade your existing short or long Alpine Control Arms with our complete IR Bushing Replacement Kits.
FEATURES/BENEFITS
- Direct replacement for factory-style control arm bushings
- Inner sleeve provides 360 degrees of rotation for unrestricted movement at full droop
- Rotating sleeve features an extremely tough, hardened bearing surface
- Eliminates rotational stress and reduces bushing bind
- Provides excellent noise, vibrations, and harshness (NVH) damping
- Improves on- and off-road ride quality and performance
- Bushings are factory lubricated and permanently sealed
- Zero maintenance
- TeraFlex Limited Lifetime Warranty against defects

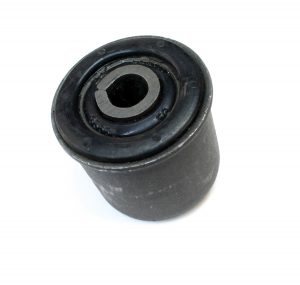

Track Bar Bushing
Replace your worn-out track bar bushing with the replacement TeraFlex JK: Track Bar Bushing. The press-in replacement bushing improves on the OEM-style rubber bushing by adding an additional rate plate for responsive handling and superior control. This high-quality factory-style bushing reduces the effects of front wheel shimmy and improves durability and tunability. Fits front or rear track bars at the axle or frame end.
| Application | Bushing | IR Bushing | Busing Bolt Size | |||||
| Vehicle | Type / Lift Height |
Position | Axle Side | Frame Side | Axle Side | Frame Side | Axle Side | Frame Side |
| 2007–2018 JK Wrangler/Unlimited |
Sport 2.5–3″ Lift Short 2–4″ Lift |
8-Arm (All) | 1952700 | |||||
| Front Upper | 611014 | 611017 | 12mm | 12mm | ||||
| Front Lower | 611011 | 611011 | 611015 | 611015 | 14mm | 14mm | ||
| Rear Upper | 611012 | 611012 | 611016 | 611016 | 14mm | 14mm | ||
| Rear Lower | 611011 | 611011 | 611015 | 611015 | 14mm | 14mm | ||
| Long 3–6″ Lift |
8-Arm & Brackets | 1952701 | ||||||
| 8-Arm (All) | 1952701 | |||||||
| Front Upper | 611013 | 611019 | 12mm | 14mm | ||||
| Front Lower | 611011 | 611011 | 611015 | 611015 | 14mm | 14mm | ||
| Rear Upper | 611012 | 611012 | 611016 | 611016 | 14mm | 14mm | ||
| Rear Lower | 611011 | 611011 | 611015 | 611015 | 14mm | 14mm | ||
| Track Bar 0–6″ Lift |
Front | 835770 | 835770 | |||||
| Rear | 835770 | 835770 | ||||||
— — — SKUs, components, and pricing are subject to change. See the website descriptions for the latest information. — — —
Check out all our TeraFlex Suspensions Lifts, Off-Road Performance Parts, and Jeep Accessories HERE!
— Words by Jason Udy
