2015+ Ford F-150: Falcon 2.25'' Sport Tow/Haul Shock Leveling System
Adjust your suspension tuning for sport or work duties with Falcon Sport Tow/Haul Shocks. The rear piggyback shocks''" easy-to-use 3-position Fast Adjust Knob's settings include Sport, Moderate Tow/Haul, and Heavy Tow/Haul.
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product Description
Adjust your suspension tuning for sport or work duties with Falcon Sport Tow/Haul Shocks. The rear piggyback shocks''" easy-to-use 3-position Fast Adjust Knob's settings include Sport, Moderate Tow/Haul, and Heavy Tow/Haul.
Details
Falcon Performance Shocks improve performance and comfort regardless of the terrain. Adjust your suspension tuning for sport or work duties with Falcon Sport Tow/Haul Shocks. These systems pair front monotube shocks with rear adjustable piggyback shocks. The easy-to-use 3-position Fast Adjust Knob's settings include Sport, Moderate Tow/Haul, and Heavy Tow/Haul. The versatility of these systems makes them ideal for daily driving, off-road excursions, and tow/haul duties.
Falcon Shock Leveling Systems provide multiple ride heights to level the front end and/or compensate for the additional weight of a winch or other accessories.
''?"High-Value Performance'' is the driving force behind our vehicle-specific dampers for Jeeps, trucks, and SUVs. We don''™t re-valve existing shocks (like other companies); we engineer complete shock absorber systems that improve the overall performance of your truck or SUV both on and off road and while towing. Falcon Performance Shocks by TeraFlex.
Sport Tow/Haul Shocks:
- Sport Tow/Haul Shocks increase stability and control as well as improve ride quality and comfort both on and off-road in a compact and affordable package
- Front monotube shocks w/ optimized tuning for on- and off-road driving
- Rear adjustable piggyback shocks w/ 3-position Fast Adjust Knob for large damping adjustments
- Rear settings include: Sport, Moderate Tow/Haul, Heavy Tow/Haul
- ideal for daily driving, off-road excursions, and tow/haul duties as well as the serious enthusiast wanting a consistent, controlled feel through all driving conditions
Front Leveling Shocks:
- Front leveling shocks w/ multiple snap ring grooves provide a range of height adjustment
Rear Piggyback Shocks:
- Piggyback design increases oil and gas capacity for reduced heat
- Flows 6x more oil than restrictive reservoir hose designs
- Eliminates common leakage issues found in banjo and swivel fittings
Falcon Shock Leveling Systems provide multiple ride heights to level the front end and/or compensate for the additional weight of a winch or other accessories.
''?"High-Value Performance'' is the driving force behind our vehicle-specific dampers for Jeeps, trucks, and SUVs. We don''™t re-valve existing shocks (like other companies); we engineer complete shock absorber systems that improve the overall performance of your truck or SUV both on and off road and while towing. Falcon Performance Shocks by TeraFlex.
Sport Tow/Haul Shocks:
- Sport Tow/Haul Shocks increase stability and control as well as improve ride quality and comfort both on and off-road in a compact and affordable package
- Front monotube shocks w/ optimized tuning for on- and off-road driving
- Rear adjustable piggyback shocks w/ 3-position Fast Adjust Knob for large damping adjustments
- Rear settings include: Sport, Moderate Tow/Haul, Heavy Tow/Haul
- ideal for daily driving, off-road excursions, and tow/haul duties as well as the serious enthusiast wanting a consistent, controlled feel through all driving conditions
Front Leveling Shocks:
- Front leveling shocks w/ multiple snap ring grooves provide a range of height adjustment
Rear Piggyback Shocks:
- Piggyback design increases oil and gas capacity for reduced heat
- Flows 6x more oil than restrictive reservoir hose designs
- Eliminates common leakage issues found in banjo and swivel fittings

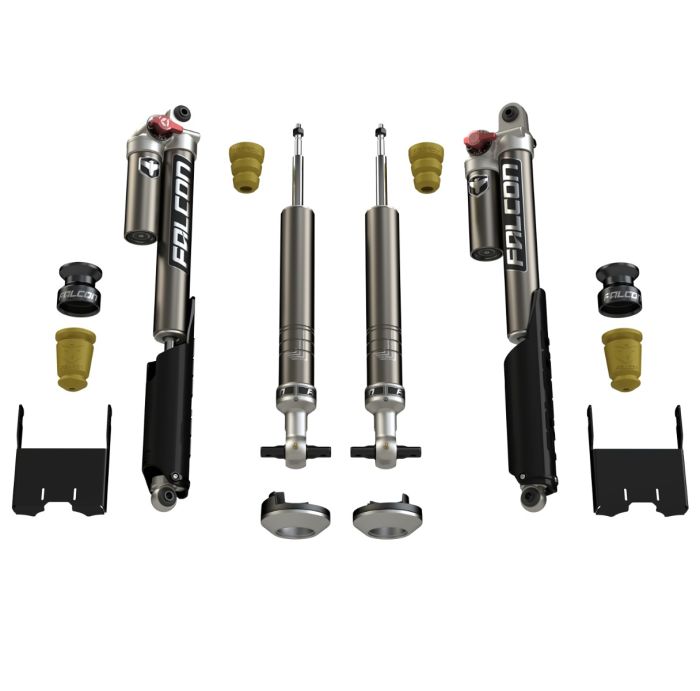

Kit Components
Front Components:
• Sport Leveling Monotube Shocks (0?"2.25" Lift)
• Microcellular Progressive Bump Stops
• Billet Coil Spring Carriers
• Injection molded squeak-free Spring Isolators
• All necessary hardware
Rear Components:
• Sport Tow/Haul Adjustable Piggyback Shocks (0" Lift)
• Microcellular Progressive Bump Stops
• Bump Stop Cups
• Bump Stop Landing Pads
• Roost Guards
• All necessary hardware
• Sport Leveling Monotube Shocks (0?"2.25" Lift)
• Microcellular Progressive Bump Stops
• Billet Coil Spring Carriers
• Injection molded squeak-free Spring Isolators
• All necessary hardware
Rear Components:
• Sport Tow/Haul Adjustable Piggyback Shocks (0" Lift)
• Microcellular Progressive Bump Stops
• Bump Stop Cups
• Bump Stop Landing Pads
• Roost Guards
• All necessary hardware
Installation
DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
Have a certified mechanic do it for you!
Additional Information
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product
Truck/SUV Performance Shocks
- Vehicle-specific shock absorbers
- Race-inspired performance for increased vehicle stability
- Improved dynamic roll control and low-speed damping
- Dramatic improvement in on-road comfort and off-road performance
- Optimized fitment for unobstructed suspension travel and articulation
- 2.3" shock body provides optimal performance
- 6061-T6 aluminum alloy shock body resists Impact to protect internal components
- Smooth honed internal shock body surface for long-term performance
- 3/4" induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling
- Large shaft diameter provides wide range of adjustment on adjustable shocks
- Hard anodized 6061-T6 aluminum alloy billet piston
- 1-piece Teflon bronze piston wear band w/ O-ring
- VOD (Volume Optimized Damping) features a digressive linear piston
- VOD reduces shock bottoming at full compression or over uneven terrain
- OGS (Oil/Gas Separator) prevents cavitation
- ZRT (Zone Rate Tuning) assists factory spring in the Extension Zone and Compression Zone during aggressive driving ?" does NOT affect Drive Zone
- Internal Negative-Rate Coil Spring eliminates top out clunk and shock stress during Extension Zone; softens tire landing on impact
- Vehicle tuned microcellular Progressive Bump Stops reduce harsh bottom outs (when applicable)
- High-quality spherical bushings (when applicable)
- Zerk fittings to lube bushing (when applicable)
- Red Line synthetic oil w/ a high Viscosity Index for consistent performance across all temperatures
- Synthetic formula also contains special anti-wear and lubricity agents
- 1,000-hour salt spray corrosion resistance test on all hardware
- Serviceable and rebuildable (factory serviced)
- Designed, engineered, and assembled in-house from domestic and globally sourced components
- Patented design
- 3-year warranty
