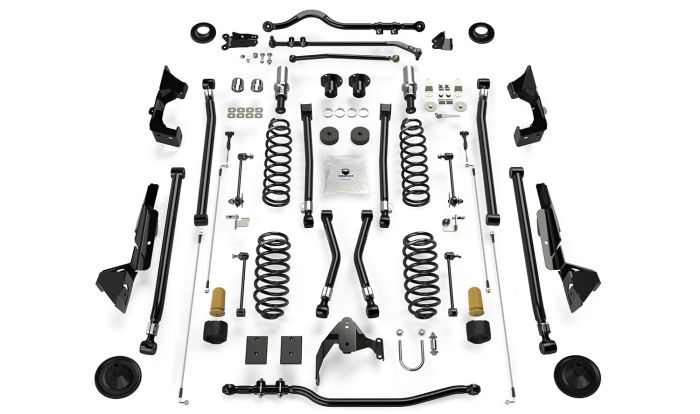

JK 4dr: 6" Alpine RT6 Long Arm Suspension System - No Shocks.

TeraFlex Alpine RT (Rogue Trail) Suspension Systems build on our already capable Alpine CT (Cross-Trail) Suspension Systems. These systems include all our top-of-the-line components.

The TeraFlex 6" Alpine RT6 Long Arm Suspension System excels on the highway off-road through the desert or rock crawling! TeraFlex lifts are built on decades of research and development resulting in the ultimate suspension. Includes our HD Drag Link Flip Kit with Front Track Bar Drop Bracket & Frame Brace Kit to correct steering geometry eliminate front end shimmy and reinforce the frame. The Alpine RT6 is the pinnacle of JK suspension systems!

Adjustable Alpine IR Long Control Arms balance front caster and pinion angles as well as optimize rear pinion angles anti-squat geometry and tire position on vehicles with 3-6" lifts. On higher lifts Alpine Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during extreme droop as well as shock load transferred through the control arms.

The HD Forged Adjustable Front and Rear (4"+) Track Bars and Rear Track Bar Bracket improve steering response center the axles to optimize vehicle roll center and reduce body roll for improved handling. Alpine IR Control Arms feature our IR (Independent Rotation) Bushings. These innovative bushings remove bushing bind during full suspension travel for less overall bushing load during articulation resulting in unrestricted droop as well as a noticeable ride improvement whether on the highway or the trail.

This results in improved suspension geometry and relaxed control arm angles for a superior ride quality and performance regardless of terrain. These systems restore front and rear roll axis angles to minimize brake dive and acceleration squat. TeraFlex suspension systems provide reduced noise, vibration, and harshness (NVH). Alpine RT Suspension Systems are for the Jeeper who wants it all!

The granddaddy of all our kits, the TeraFlex 6" Alpine RT6 Long Arm Suspension System is engineered to excel on the highway, off-road, through the desert, or rock crawling! The Alpine RT6 is the pinnacle of JK suspension systems!

Fitment and Installation Notes

• - Color: 12mm X 100
• - Alpine RT6:
• - Lift Height: 6"
• - Max Tire Diameter: 38"
• - HD Drag Link Flip Kit with Front Track Bar Drop Bracket & Frame Brace Kit corrects steering geometry, eliminates front end shimmy, and reinforces the frame
• - RT Long Arm Suspension Systems:
• - Adjustable Alpine IR Long Control Arms & Brackets balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3-6" lift kits
• - Alpine IR Long Control Arms are constructed from durable 42mm x 4mm (upper) or 50mm x 5mm (lower) wall DOM tube for maximum strength
• - On higher lifts, Alpine Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during extreme droop as well as shock load transferred through the Alpine IR Long Control Arms
• - Alpine Long Arm Brackets are gusseted and reinforced for superior strength with reduced NVH compared to other long arm kits
• - Rogue Trail:
• - Delivers true Rogue Trail (RT) performance
• - Positive, responsive handling with reduced NVH
• - Innovative IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping
• - Maintenance-free IR Bushings improve on- and off-road ride quality and performance
• - HD Forged Adjustable Front and Rear (4"+) Track Bars and Rear Track Bar Bracket improve steering response, center axles to optimize vehicle roll center, and reduce body roll for improved handling
• - Front SpeedBump and rear Progressive Bump Stops provide progressive compression during high-speed suspension movement
• - Coil spring retainers prevent the springs from unseating during full suspension travel
• - Full range of movement for off-road flex and articulation
• - TeraFlex Limited Lifetime Warranty against defects
• - Fitment: Fits:
• - Fitment: JK Wrangler Unlimited (4-Door)
• - Fitment: Specs:
• - Fitment: Lift Height: 6"
• - Fitment: Max Tire Diameter: 38"
• - Height: 19
• - Installation Time: 24 Hours
• - Length: 44
• - Product Image Size: Default
• - Note: Requires aftermarket wheels with 4.75" backspacing or less - or Offset Wheel Adapters (# 1055000) for stock wheels - NOT INCLUDED.
• - Note: Requires driveshaft modifications such as our High-Angle Rzeppa CV Driveshafts or our High-Angle Rzeppa CV Joint Kit (# 1744014).
• - Note: Requires cutting/removal of factory control arm bracketry to install Alpine Long Arm Brackets.
• - Note: Requires cutting and welding.
• - Note: Alignment required.
• - Note: Requires longer shocks (NOT INCLUDED in base kit)
• - Note: Falcon Performance Shocks recommended.
• - Size: 2XL
• - Featured: No
• - Width: 38

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product

SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.
