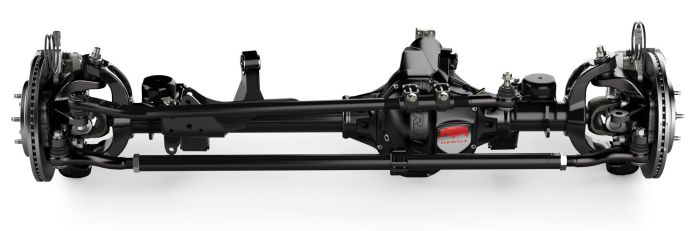

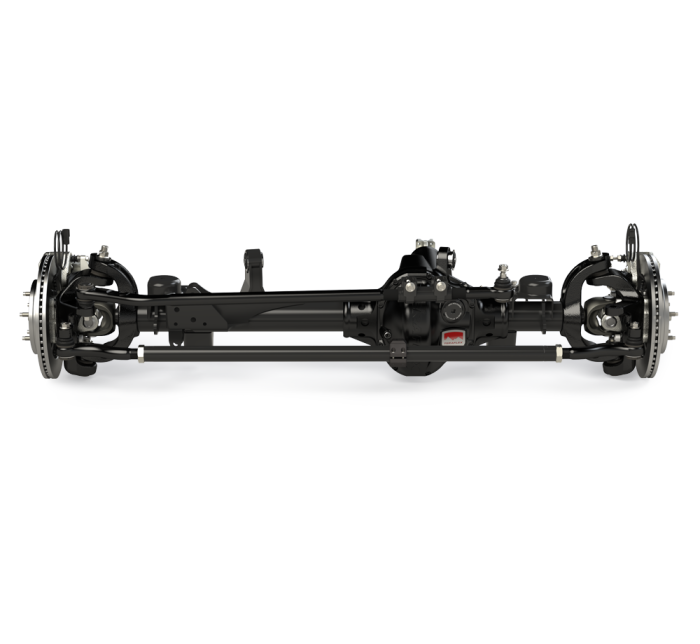

JK: 67" Tera60 HD Front Axle with Unit Bearing & 5.38 R&P & ARB Locker (4-6" Lift).

The complete Tera60 HD Front Axle Assembly with Unit Bearing includes pre-installed Super 60 ring and pinion gears ARB air locker unit bearings and Spicer HD Ball Joints as well as inner and outer axle shafts knuckle assembly brakes and sensors. TeraFlex HD Front Axle Housings are perfect for replacing bent broken or damaged axles in JK Wrangler/Unlimited vehicles including Rubicon models. Can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axle's weak areas.

Tera60 HD Front Axle Housings are the ultimate upgrade for JK models requiring maximum suspension up travel and compression. Compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring and pinion strength. Our heavy-duty axle housings feature smooth profile surfaces axle tubes all necessary mount brackets control arm bushings forged inner knuckles and more!

The complete Tera60 HD Front Axle Assembly with Unit Bearing includes pre-installed Super 60 ring & pinion gears, ARB air locker, unit bearings, and Spicer Ball Joints as well as axle shafts, knuckle assembly, brakes, and sensors.

Fitment and Installation Notes

• - Sealed unit bearing assembly for long-term maintenance-free dependability
• - 3.25" O.D. x 0.375" wall DOM axle tube for superior strength vs. weight
• - 67" WMS-WMS and 5x5" wheel bolt pattern (5x5.5" optional)
• - Includes Front Big Brake Kit with 13.3" Vented Rotors
• - Fixed spindle mount hub assembly
• - Tera60 specific high-pinion front axle housing design
• - Includes 1350 series pinion yoke
• - 35-spline inner and outer axle shafts
• - Outer pinion bearing pocket features a renewable oil reservoir that sends cool oil to the pinion bearing
• - Oversized outer pinion bearing handles increased torque and high-load conditions
• - High-capacity housing holds maximum amount of oil
• - Asymmetric housing design for extra-long tube side strength
• - Pre-installed inner axle seals
• - HD forged inner knuckles with greater upper and lower section strength
• - Ductile cast iron housing with increased rib gussets
• - HD ductile iron differential cover
• - Smooth radius bottom design to glide over rocks and obstacles
• - Integrated lower control arm skid plates
• - High-flow oil passages
• - Reinforced front track bar mount (ties into spring pad) for greater strength
• - UV protected triple-stage powder coat for corrosion resistance
• - 1/4"-thick CNC laser cut axle brackets for extreme strength
• - Integrating the front upper control arm mounts into the housing increases up travel an additional 2" compared to other aftermarket Dana 60 axles
• - Pre-installed upper control arm bushings
• - Proper pinion angle for lifted JK applications
• - 4-6" Lift features a raised pinion angle and raised track bar bracket (where applicable)
• - Pre-tapped hole on spring perch for bump stop extensions
• - Pre-drilled holes for limit straps and lower spring retainers
• - Retains all JK ESP, ABS, and speedometer sensor capability
• - 100% engineered, designed, and built in the USA with new components
• - 1-Year/Unlimited Mileage Warranty
• - Fitment: JK Wrangler (2-door)
• - Fitment: JK Wrangler Unlimited (4-door)
• - Fitment: 4-6" Lift
• - Height: 24
• - Installation Time: 6 hours
• - Length: 25
• - Product Image Size: Default
• - Note: Requires driveshaft modifications such as our High-Angle Rzeppa CV Driveshafts or our High-Angle Rzeppa CV Joint Kit (# 1744014). CONTACT us for options!
• - Featured: No
• - Width: 78
