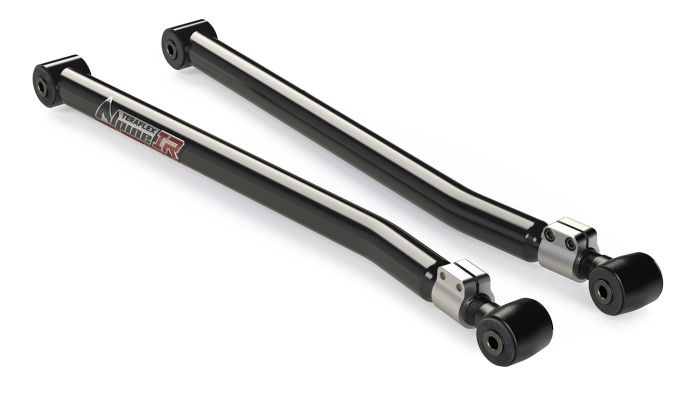

JK: Alpine IR Long Control Arm Kit – Front Lower (3-6" Lift)
$653.99
SKU
1315580
TeraFlex JK: Alpine IR Long Control Arms & Alpine Long Arm Brackets provide maximum performance on JK Wrangler/Unlimited models with 3-6" lifts. Innovative IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping.
TeraFlex JK: Alpine IR Long Control Arms and Alpine Long Arm Brackets (NOT INCLUDED) provide complete alignment adjustability and dependability for maximum performance on JK Wrangler/Unlimited models with 3-6" lifts. Can be added to an existing suspension lift.
Our innovative IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping. These maintenance-free bushings improve on- and off-road ride quality and performance.
Must be used with TeraFlex JK: Alpine Long Arm Bracket Kit (# 1957000) – NOT INCLUDED. On higher lifts Alpine Long Arm Brackets reposition the frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during droop and shock load transferred through the control arms.
CAD-engineered Alpine Long Arm Brackets are designed for maximum strength. By streamlining the frame-end mounting points we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance.
JK Alpine IR Long Control Arms:
• Adjustable Alpine IR Long Control Arms & Brackets balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3-6" lift kits
• Alpine IR Long Control Arms are constructed from durable 42mm x 4mm (upper) or 50mm x 5mm (lower) wall DOM tube for maximum strength
• On higher lifts, Alpine Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during droop and shock load transferred through the Alpine IR Long Control Arms
• Alpine Long Arm Brackets are gusseted and reinforced for superior strength w/ reduced NVH compared to other long arm kits
JK Alpine IR Control Arms (all):
• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
• Full range of movement will not restrict articulation or flex off-road
• Innovative IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping
• Maintenance-free IR Bushings improve on- and off-road ride quality and performance
• Zero maintenance forged threaded joints for smooth quiet flex
• Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
• TeraFlex Lifetime Warranty against defects
Fits:
• JK Wrangler (2-door)
• JK Wrangler Unlimited (4-door)
• 3-6" Lift
Control Arm Specs:
• Tube Diameter & Wall = 2" X 0.197" (50mm X 5mm)
• Factory Length = 22-5/8"
• Min. Length = 33-3/4"
• Max. Length = 35-1/4"
• Both Ends = 9/16" (14mm) Bolt
• Thread = 1-1/4"-12 UNF
• Requires cutting and welding.
• Requires cutting/removal of factory control arm bracketry to install Alpine Long Arm Brackets.
• TeraFlex adjustable Long Control Arms (Alpine IR: # 1315000 & Alpine: # 1315000) MUST be used w/ Alpine Long Arm Bracket Kit (# 1957000) – NOT INCLUDED.
