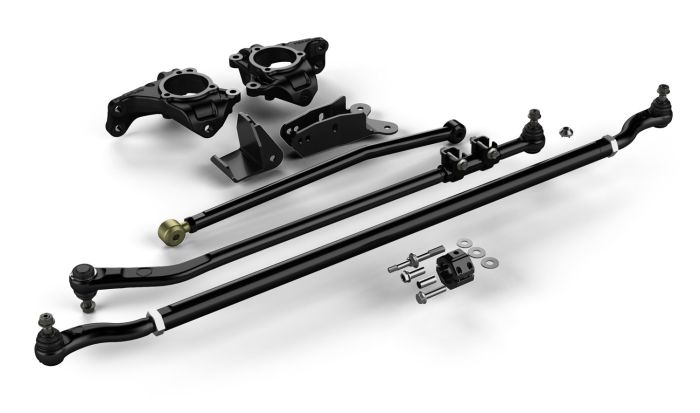

JK: Dana 30/44 High Steer System With HD Tie Rod Kit & HD Drag Link Flip Kit

Skip to the end of the images gallery

Skip to the beginning of the images gallery

JK: Dana 30/44 High Steer System With HD Tie Rod Kit & HD Drag Link Flip Kit

In stock

SKU

4391000

Be the first to review this product

$1,938.97

JK: Dana 30/44 High Steer System with HD Tie Rod Kit & HD Drag Link Flip Kit.

- The complete TeraFlex JK: Dana 30/44 High Steer System with HD Chromoly Tie Rod Kit & HD Forged Drag Link Flip Kit addresses all the front-end steering issues associated with lifted JK Wrangler/Unlimited models.
- High Steer Knuckle Pair (4-6" Lift) (# 4390870)
- Track Bar Drop Bracket & Frame Brace Kit
- Front Upper (4-6" Lift) (# 1600444)

Fitment and Installation Notes

- Does not affect operation of factory stability and traction control systems including ESP and ABS.
- REQUIRES aftermarket wheels with 4.75" backspacing or less - or 1.25" Wheel Offset Adapter Pair (# 1055000 x 2) for stock wheels - NOT INCLUDED.
- NOT compatible with Falcon Nexus EF Steering Stabilizers when used with factory'style track bar bracket and/or factory'style axle housing.
- REQUIRES welding.

JK: Dana 30/44 High Steer System with HD Tie Rod Kit & HD Drag Link Flip Kit.
The complete TeraFlex JK: Dana 30/44 High Steer System with HD Chromoly Tie Rod Kit & HD Forged Drag Link Flip Kit addresses all the front-end steering issues associated with lifted JK Wrangler/Unlimited models. This system beefs up the steering components of the Dana 30 or Dana 44 front axle, helps maximize steering component ground clearance, and restores correct steering geometry for superior highway drivability. Highly recommended for JK models with 4" or more lift.
These High Steer Knuckles maintain correct steering geometry angles for superior highway drivability. Tie Rod ground clearance is increased by more than 1-1/8" to prevent tie rod damage and bending. Cast from heavy-duty ductile iron and reinforced in areas prone to stress and deflection.
The Front Upper Track Bar Drop Bracket lowers the Front Track Bar mounting point to correct steering geometry for superior highway drivability. Multiple track bar mounting holes allow you to fine tune the track bar angle to reduce bump steer and other front-end issues. The Front Right Frame Brace and Front Frame Brace Bar reinforce the frame further reducing front end shimmy and excess frame movement.
Our complete High Steer System (# 4391000) combines our High Steer Knuckle Pair (# 4390870) with our HD Chromoly Tie Rod Kit (# 1853910), HD Forged Drag Link Flip Kit (# 1853930), Front Upper Track Bar Drop Bracket & Frame Brace Kit (# 1600444), and Steering Stabilizer Relocation Kit (# 1123160). Most replacement components available separately.
The complete TeraFlex JK: Dana 30/44 High Steer System with HD Chromoly Tie Rod Kit & HD Forged Drag Link Flip Kit addresses all the front-end steering issues associated with lifted JK Wrangler/Unlimited models. Recommended for 4"+ lifts.
Fitment and Installation Notes
- "Flipping" the HD Forged Drag Link (50% stiffer than factory) over the Knuckle helps eliminate front-end shimmy and other alignment issues. The axle end joint is flipped 180 degrees so it can be pressed down into the top of the knuckle.
- Compatible with all factory and aftermarket axle shafts, ball joints, wheel hubs, and tie rods. Does not affect operation of factory stability and traction control systems including ESP and ABS.
- REQUIRES aftermarket wheels with 4.75" backspacing or less - or 1.25" Wheel Offset Adapter Pair (# 1055000 x 2) for stock wheels - NOT INCLUDED.
- NOT compatible with Falcon Nexus EF Steering Stabilizers when used with factory'style track bar bracket and/or factory'style axle housing. Incompatible Nexus EF Steering Stabilizers: 2.2 Fast Adjust (1-3/8" OEM Tie Rod: # 01-02-22-110-138) (1-1/2" HD Tie Rod: # 01-02-22-110-112) (1-5/8" HD Tie Rod: # 01-02-22-110-158) or 2.1 (1-3/8" OEM Tie Rod: # 01-02-21-110-138) (1-1/2" HD Tie Rod: # 01-02-21-110-112) (1-5/8" HD Tie Rod: # 01-02-21-110-158).
- REQUIRES welding.
DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. TeraFlex is NOT responsible for any damage or failure resulting from improper installation.

Estimated Labor Time: 7 Hours
Installation Effort: 7 Hours

999104 JK Frame Brace and Drag Link Flip Kit Instructions (204.06 kB)

999186 JK High Steer Knuckles (3.16 MB)

Have a certified mechanic do it for you!
Location *
Location
Distributor Name
- - Addresses all the front-end steering issues associated with lifted JK Wrangler/Unlimited models
- - Installation does not require any cutting or removal of factory bracketry
- - Check the individual part numbers below for more detailed Features & Benefits:
- - High Steer Knuckle Pair (4-6" Lift) (# 4390870)
- - Track Bar Drop Bracket & Frame Brace Kit
- - Front Upper (4-6" Lift) (# 1600444)
- - HD Chromoly Tie Rod Kit (0-6" Lift) 1853910)
- - HD Forged Drag Link Flip Kit (4-6" Lift) (# 1853930)
- - Steering Stabilizer Relocation Kit (1-5/8" HD Tie Rod) (# 1123160)
- - Fitment: Vehicle(s):
- - Fitment: JK Wrangler (2-door)
- - Fitment: JK Wrangler Unlimited (4-door)
- - Fitment: Axle(s):
- - Fitment: Dana 30 front axle
- - Fitment: Dana 44 front axle
- - Fitment: Lift Height:
- - Fitment: 4-6" Lift
- - Height: 10.75
- - Installation Time: 7 Hours
- - Length: 45.5
- - Product Image Size: Default
- - Note: REQUIRES aftermarket wheels with 4.75" backspacing or less - or 1.25" Wheel Offset Adapter Pair (# 1055000 x 2) for stock wheels - NOT INCLUDED.
- - Note: NOT compatible with Falcon Nexus EF Steering Stabilizers when used with factory'style track bar bracket and/or factory'style axle housing. Incompatible Nexus EF Steering Stabilizers: 2.2 Fast Adjust (1-3/8" OEM Tie Rod: # 01-02-22-110-138) (1-1/2" HD Tie Rod: # 01-02-22-110-112) (1-5/8" HD Tie Rod: # 01-02-22-110-158) or 2.1 (1-3/8" OEM Tie Rod: # 01-02-21-110-138) (1-1/2" HD Tie Rod: # 01-02-21-110-112) (1-5/8" HD Tie Rod: # 01-02-21-110-158).
- - Note: REQUIRES welding.
- - Featured: No
- - Width: 16
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product
installation_video=https://www.youtube.com/embed/kPwZcIqsImc https://www.youtube.com/embed/95jJgXjzv9w

Description

JK: Dana 30/44 High Steer System with HD Tie Rod Kit & HD Drag Link Flip Kit.

- The complete TeraFlex JK: Dana 30/44 High Steer System with HD Chromoly Tie Rod Kit & HD Forged Drag Link Flip Kit addresses all the front-end steering issues associated with lifted JK Wrangler/Unlimited models.
- High Steer Knuckle Pair (4-6" Lift) (# 4390870)
- Track Bar Drop Bracket & Frame Brace Kit
- Front Upper (4-6" Lift) (# 1600444)

Fitment and Installation Notes

- Does not affect operation of factory stability and traction control systems including ESP and ABS.
- REQUIRES aftermarket wheels with 4.75" backspacing or less - or 1.25" Wheel Offset Adapter Pair (# 1055000 x 2) for stock wheels - NOT INCLUDED.
- NOT compatible with Falcon Nexus EF Steering Stabilizers when used with factory'style track bar bracket and/or factory'style axle housing.
- REQUIRES welding.

Details

JK: Dana 30/44 High Steer System with HD Tie Rod Kit & HD Drag Link Flip Kit.

The complete TeraFlex JK: Dana 30/44 High Steer System with HD Chromoly Tie Rod Kit & HD Forged Drag Link Flip Kit addresses all the front-end steering issues associated with lifted JK Wrangler/Unlimited models. This system beefs up the steering components of the Dana 30 or Dana 44 front axle, helps maximize steering component ground clearance, and restores correct steering geometry for superior highway drivability. Highly recommended for JK models with 4" or more lift.

These High Steer Knuckles maintain correct steering geometry angles for superior highway drivability. Tie Rod ground clearance is increased by more than 1-1/8" to prevent tie rod damage and bending. Cast from heavy-duty ductile iron and reinforced in areas prone to stress and deflection.

The Front Upper Track Bar Drop Bracket lowers the Front Track Bar mounting point to correct steering geometry for superior highway drivability. Multiple track bar mounting holes allow you to fine tune the track bar angle to reduce bump steer and other front-end issues. The Front Right Frame Brace and Front Frame Brace Bar reinforce the frame further reducing front end shimmy and excess frame movement.

Our complete High Steer System (# 4391000) combines our High Steer Knuckle Pair (# 4390870) with our HD Chromoly Tie Rod Kit (# 1853910), HD Forged Drag Link Flip Kit (# 1853930), Front Upper Track Bar Drop Bracket & Frame Brace Kit (# 1600444), and Steering Stabilizer Relocation Kit (# 1123160). Most replacement components available separately.

Fitment and Installation Notes

- "Flipping" the HD Forged Drag Link (50% stiffer than factory) over the Knuckle helps eliminate front-end shimmy and other alignment issues. The axle end joint is flipped 180 degrees so it can be pressed down into the top of the knuckle.

- Compatible with all factory and aftermarket axle shafts, ball joints, wheel hubs, and tie rods. Does not affect operation of factory stability and traction control systems including ESP and ABS.

- REQUIRES aftermarket wheels with 4.75" backspacing or less - or 1.25" Wheel Offset Adapter Pair (# 1055000 x 2) for stock wheels - NOT INCLUDED.

- NOT compatible with Falcon Nexus EF Steering Stabilizers when used with factory'style track bar bracket and/or factory'style axle housing. Incompatible Nexus EF Steering Stabilizers: 2.2 Fast Adjust (1-3/8" OEM Tie Rod: # 01-02-22-110-138) (1-1/2" HD Tie Rod: # 01-02-22-110-112) (1-5/8" HD Tie Rod: # 01-02-22-110-158) or 2.1 (1-3/8" OEM Tie Rod: # 01-02-21-110-138) (1-1/2" HD Tie Rod: # 01-02-21-110-112) (1-5/8" HD Tie Rod: # 01-02-21-110-158).

- REQUIRES welding.

Installation

DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. TeraFlex is NOT responsible for any damage or failure resulting from improper installation.

Have a certified mechanic do it for you!

F&B

- Addresses all the front-end steering issues associated with lifted JK Wrangler/Unlimited models
- Installation does not require any cutting or removal of factory bracketry
- Check the individual part numbers below for more detailed Features & Benefits:
- High Steer Knuckle Pair (4-6" Lift) (# 4390870)
- Track Bar Drop Bracket & Frame Brace Kit
- Front Upper (4-6" Lift) (# 1600444)
- HD Chromoly Tie Rod Kit (0-6" Lift) 1853910)
- HD Forged Drag Link Flip Kit (4-6" Lift) (# 1853930)
- Steering Stabilizer Relocation Kit (1-5/8" HD Tie Rod) (# 1123160)
- Fitment: Vehicle(s):
- Fitment: JK Wrangler (2-door)
- Fitment: JK Wrangler Unlimited (4-door)
- Fitment: Axle(s):
- Fitment: Dana 30 front axle
- Fitment: Dana 44 front axle
- Fitment: Lift Height:
- Fitment: 4-6" Lift
- Height: 10.75
- Installation Time: 7 Hours
- Length: 45.5
- Product Image Size: Default
- Note: REQUIRES aftermarket wheels with 4.75" backspacing or less - or 1.25" Wheel Offset Adapter Pair (# 1055000 x 2) for stock wheels - NOT INCLUDED.
- Note: NOT compatible with Falcon Nexus EF Steering Stabilizers when used with factory'style track bar bracket and/or factory'style axle housing. Incompatible Nexus EF Steering Stabilizers: 2.2 Fast Adjust (1-3/8" OEM Tie Rod: # 01-02-22-110-138) (1-1/2" HD Tie Rod: # 01-02-22-110-112) (1-5/8" HD Tie Rod: # 01-02-22-110-158) or 2.1 (1-3/8" OEM Tie Rod: # 01-02-21-110-138) (1-1/2" HD Tie Rod: # 01-02-21-110-112) (1-5/8" HD Tie Rod: # 01-02-21-110-158).
- Note: REQUIRES welding.
- Featured: No
- Width: 16

Additional Information

installation_video=https://www.youtube.com/embed/kPwZcIqsImc https://www.youtube.com/embed/95jJgXjzv9w
