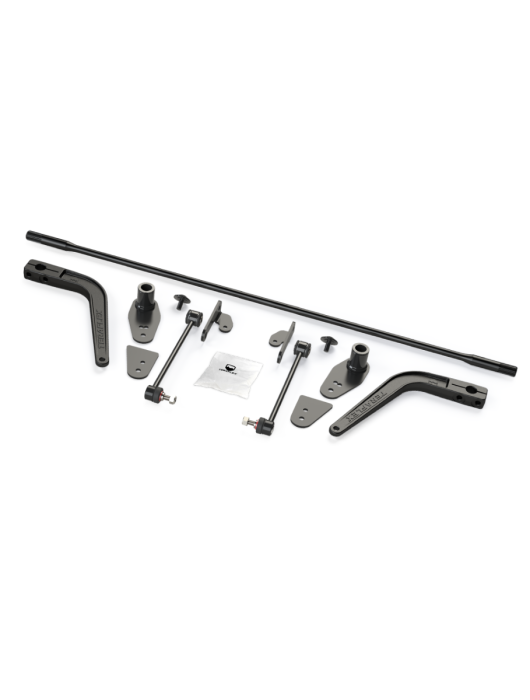

JK: Forged ST Sway Bar Kit - Rear.

The TeraFlex Forged Rear ST Sway Bar is specifically engineered to complement the TeraFlex Long Arm, Falcon Shock Coilover Suspension, while remaining compatible with all Jk Wranglers with a minimum 1-inch suspension lift. For overland-ready Jeeps seeking improved stability and reduced body roll, the ST Sway Bar will make a noticeable improvement. Conversely, Jeeps built for crawling the boulders can maximize suspension flex as the vehicle easily overcomes the torsion resistance of the sway bar.

Compatible with factory width axles* and those 70 inches and wider, the JK TeraFlex ST Sway Bar accommodates various suspension systems regardless of brand. The TeraFlex Rear ST Sway Bar provides a direct bolt up, maintenance-free solution for enhanced stability and flex. The TeraFlex JK Forged Rear ST Sway Bar is designed to provide trail-tuned torsion resistance without limiting suspension flex or sacrificing highway drivability and side-hill off-camber stability.

Fitment and Installation Notes

• - Color: 12mm X 100
• - A slight increase over factory torsion resistance provides added side hill and highway stability
• - Secure arm clamping with two 12mm bolts providing 27,000 lbs. of clamping force to prevent bar splines from loosening over time
• - Simple bolt-on installation, no modifications required
• - Improved tire to sway bar clearance
• - Teflon lined Rubber bushings maintain factory noise and vibration levels for a smooth quiet ride
• - Adjustable spacers allow for sway bar width adjustment to accommodate different tire sizes and fender liner clearance
• - Fitment: Compatible with all engine configurations and 2/4-dr JK Wrangler models
• - Fitment: All Factory axles require wheels with a maximum backspacing of 4.75" or wheel adapters
• - Fitment: Fits all factory width axles as well as 70" and wider axles
• - Fitment: May require trimming of fender liners depending on aftermarket modifications
• - Fitment: Available Options:
• - Fitment: 1790002 - 0-2.5" Lift
• - Fitment: 1790003 - 3-4" Lift
• - Fitment: 1790004 - 5-6" Lift
• - Fitment: 1790005
• - Fitment: Coilover Suspension
• - Height: 3.8
• - Installation Time: 4 Hours
• - Length: 56
• - Product Image Size: Default
• - Note: Torsion Bar: Machined, heat-treated AISI 4140 alloy steel
• - Note: Arms: Forged, heat-treated AISI 1045 carbon steel
• - Note: Bushings: Rubber over-molded aluminum with Teflon liner (OEM style) with powder-coated steel backing
• - Note: High-quality OEM-style hardware
• - Note: E-dip coating on bar and arms
• - Note: 1000-hour salt spray tested
• - Note: Compatible with all suspension lifts 1" plus
• - Note: Designed for TeraFlex JK Coilover Suspension but beneficial for any lifted JK Wrangler
• - Size: 2XL
• - Featured: No
• - Width: 12

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product

SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.
