JK: Tera30/44 High-Performance Front Axle Tube Seal - 0.5" Wall
JK: Tera30/44 High-Performance Front Axle Tube Seal - 0.5" Wall.
- - The TeraFlex JK: Tera30/44 High-Performance Front Axle Tube Seal fits the oversized 3.25" O.D. axle tubes found on our Tera30 HD and Tera44 HD Replacement Axle Housings.
Description
JK: Tera30/44 High-Performance Front Axle Tube Seal - 0.5" Wall.
- - The TeraFlex JK: Tera30/44 High-Performance Front Axle Tube Seal fits the oversized 3.25" O.D. axle tubes found on our Tera30 HD and Tera44 HD Replacement Axle Housings.
JK: Tera30/44 High-Performance Front Axle Tube Seal - 0.5" Wall.

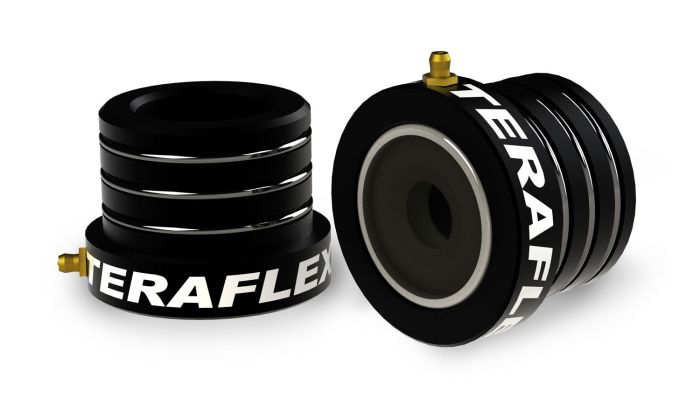

The TeraFlex JK: Tera30/44 High-Performance Front Axle Tube Seal fits the oversized 3.25" O.D. axle tubes found on our Tera30 HD and Tera44 HD Replacement Axle Housings. The press-in outer triple O-ring tube seal provides a barrier to keep the housing clear of contaminants such as mud and water. The inner double axle seal surface features a cavity between the seal surfaces to form a grease filled pocket that provides lubrication for the seals as well as an additional barrier for mud and grime.
These are the same seals developed proven and currently used in many NASCAR applications. The axle tube seal is compatible with most axle shafts including 27-spline Dana 30 up to aftermarket 1.5" 35-spline Dana 44 shafts. The billet 6061-T6 aluminum seal housing is laser etched with graphics and black hard anodized for superior corrosion resistance.
- - Color: 12mm X 100
- - Fitment: JK Wrangler (2-door)
- - Fitment: JK Wrangler Unlimited (4-door)
- - Fitment: Tera30 Axle Tube with 0.5" Wall
- - Fitment: Tera44 Axle Tube with 0.5" Wall
- - Height: 3.5
- - Installation Time: 2 hours
- - Length: 9.5
- - Size: 2XL
- - Width: 4.5
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product
SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.
ADDITIONAL SERVICES & COSTS MAY BE REQUIRED
INSTALLATION ALIGNMENT NOTE
Your vehicle may require a wheel alignment following installation to ensure proper handling and tire wear.
Additional alignment costs may apply.
INSTALLATION HEADLAMP AIM NOTE
Headlamp aim and alignment must be checked and adjusted as necessary following installation to help ensure proper visibility and the safety of other drivers.
Additional headlamp adjustment costs may apply.
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE
If your vehicle is equipped with active or passive safety, collision monitoring, or driver assistance systems, these systems must be checked and adjusted as necessary following installation.
This includes, but is not limited to, camera-based and radar-based systems that may be affected by changes in vehicle ride height or suspension geometry.
Some vehicles may require OEM diagnostic equipment and factory-trained technicians to properly recalibrate ADAS functions.
Additional ADAS calibration costs may apply.
Have a certified mechanic do it for you!
installation_video=https://www.youtube.com/embed/FGJY2v5yBXM
