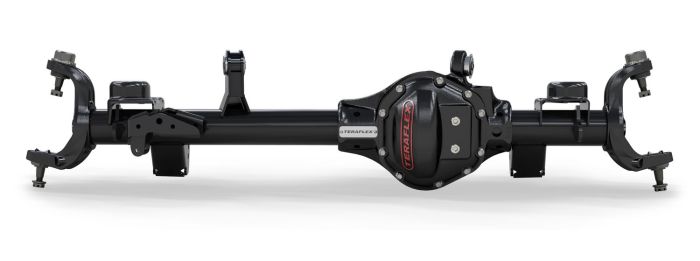

JK: Tera44 HD Front Axle Housing w/ 4.88 R&P & ARB Locker (0-3" Lift)
$4,794.99
SKU
3552488
Our Tera44 HD Front Axle Housing w/ Ring & Pinion & ARB Locker provides a choice of pre-installed ring & pinion gears, ARB air locker, and TeraFlex HD Ball Joints. Requires new inner axle shafts and transferring of some exiting components.
TeraFlex HD Front Axle Housings are perfect for replacing bent broken or damaged axles in JK Wrangler/Unlimited vehicles including Rubicon models. Can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axles– weak areas.
Our Bare HD Front Axle Housings feature a heavy-duty housing with axle tubes bracketry and forged inner knuckles as well as pre-installed inner seals and upper control arm bushings.
Stepping up to our Tera44 HD Front Axle Housing w/ Ring & Pinion & ARB Locker provides a choice of pre-installed ring and pinon gears ARB air locker and TeraFlex HD Ball Joints. Transfer your outer stub shafts outer knuckles and outer axle assembly (unit bearings brakes sensors) to make a complete axle assembly. Requires new inner axle shafts
6 hours install time
• 3.25 O.D. x 0.5" wall extreme duty axle tube increases torsional strength to resist bending
• Asymmetric housing design for extra-long tube side strength
• Pre-installed inner axle seals
• HD forged inner knuckles w/ greater upper and lower section strength
• Ductile cast iron housing w/ increased rib gussets
• HD ductile iron differential cover
• Smooth radius bottom design to glide over rocks and obstacles
• Integrated lower control arm skid plates
• High-flow oil passages and bottom oil drain hole for simple fluid changes
• Reinforced front track bar mount (ties into spring pad) for greater strength
• UV protected triple-stage powder coat for corrosion resistance
• 1/4"-thick CNC laser cut axle brackets for extreme strength
• Integrated factory location upper control arm mount
• Pre-installed upper control arm bushings
• Proper pinion angle for lifted JK applications
• 4-6" Lift features a raised pinion angle and raised track bar bracket (where applicable)
• Pre-tapped hole on spring perch for bump stop extensions
• Pre-drilled holes for limit straps and lower spring retainers
• Retains all JK ESP, ABS, and speedometer sensor capability
• 100% engineered, designed, and built in the USA w/ new components
• 1-Year/Unlimited Mileage Warranty
• JK Wrangler (2-door)
• JK Wrangler Unlimited (4-door)
• May require driveshaft modifications such as our High-Angle Rzeppa CV Driveshafts or our High-Angle Rzeppa CV Joint Kit (# 1744014). CONTACT us for options!
