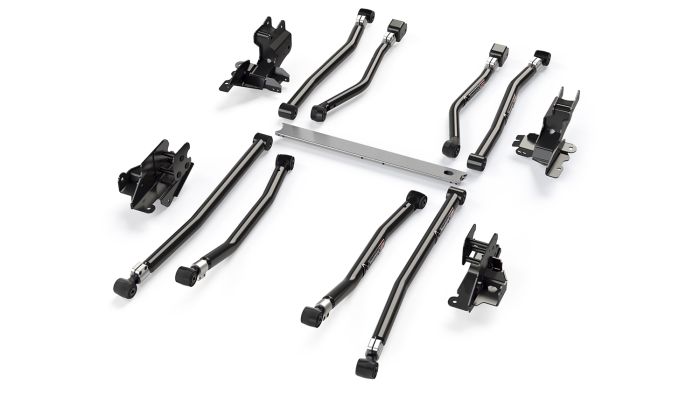

JL 4dr: Alpine IR Long Control Arm & Bracket Kit – 8-Arm (3-6" Lift)

$3,685.97
SKU
1310510
TeraFlex JL: Alpine IR Long Arms and Long Arm Brackets provide maximum performance on JL Wrangler/Unlimited models with 3–6” lifts. Innovative IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping.
TeraFlex JL: Alpine IR Long Arms and Long Arm Brackets provide complete alignment adjustability and dependability for maximum performance on JL Wrangler/Unlimited models with 3–6” lifts. Our innovative, maintenance-free IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping to improve on- and off-road ride quality and performance. CAD-engineered TeraFlex JL: Long Arm Brackets are designed for maximum strength. By streamlining the frame-end mounting points, we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance. Front Long Arm Suspension Crossmember provides additional strength. Can be added to any existing suspension lift.
Alpine IR Control Arms (Short / Long): • Innovative, maintenance-free IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping to improve on- and off-road ride quality and performance JL / JT: Long Control Arms (Alpine/IR) and Long Arm Brackets: • Adjustable Long Control Arms and Long Arm Brackets balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3–6” lift kits • Long Control Arms are constructed from durable 42mm x 4mm (front upper) or 50mm x 5mm (front lower, rear upper, rear lower) wall DOM tube for maximum strength • On higher lifts, bolt-on Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during extreme droop and shock load transferred through the Long Control Arms • Long Arm Brackets are gusseted and reinforced for superior strength w/ reduced NVH compared to other long arm kits • Long Arm Brackets feature a premium triple-stage powder coating that provides superior durability and corrosion resistance • Front Long Arm Suspension Crossmember provides additional strength • Install and drive simple bolt-on installation — no welding required Adjustable Control Arms (all): • Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase • Full range of movement will not restrict articulation or flex off-road • Zero maintenance forged threaded joints for smooth quiet flex • Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance • Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment • TeraFlex Lifetime Warranty against defects
Vehicle(s): • JL Wrangler Unlimited (4-door) Specs: • Lift Height: 3–6” • Does NOT fit 4-door JL Wrangler Unlimited 4xe hybrid models Control Arm Specs: JL / JT: Alpine IR Long Arm Pair – Front Upper (# 1310520): • Tube Diameter & Wall: 42mm x 4mm • Factory Length: 20-1/4” • Min. Length: 27-3/4” • Max. Length: 28-7/8” • Bolt – Axle: 12mm • Bolt – Frame: 14mm • IR Bushing – Axle: 611018 • IR Bushing – Frame: 611016 JL / JT: Alpine IR Long Arm Pair – Front Lower (# 1310500): • Tube Diameter & Wall: 50mm x 5mm • Factory Length: 24” • Min. Length: 30-7/8” • Max. Length: 32” • Bolt – Both: 16mm • IR Bushing – Both: 611020 JL: Alpine IR Long Arm Pair – Rear Upper (# 1310560): • Tube Diameter & Wall: 50mm x 5mm • Factory Length: 17-3/8” • Min. Length: 32-3/4” • Max. Length: 33-3/4” • Bolt – Both: 14mm • IR Bushing – Axle: 611015 • IR Bushing – Frame: 611016 JL: Alpine IR Long Arm Pair – Rear Lower (# 1310540): • Tube Diameter & Wall: 50mm x 5mm • Factory Length: 19-3/4” • Min. Length: 36-1/4” • Max. Length: 37-3/8” • Bolt – Both: 14mm • IR Bushing – Both: 611015
• Adjustable Long Control Arms (JL: Alpine: # 1316005) (JL: Alpine IR: # 1310505) MUST be used w/ Long Arm Bracket Kit (JL 2dr: # 1958002) (JL 4dr: # 1958000). • REQUIRES cutting/removal of factory control arm bracketry to install Long Arm Brackets. • Alignment REQUIRED. • Available RockGuard Transmission Skid Plate & Long Arm Crossmember Reinforcement (JL / JT: # 4609100) protects your transmission and reinforces your Front Long Arm Suspension Crossmember. RECOMMENDED, BUT NOT REQUIRED. • Does NOT fit 4-door JL Wrangler Unlimited 4xe hybrid models. IR Bushing: • Kit – 8 Long Arms (JL: # 1952801) • Front Upper (JL / JT – Axle: # 611018) (JL / JT – Frame: # 611016) • Front Lower (JL / JT: # 611020 x 2) • Rear Upper (JL – Axle: # 611015) (JL – Frame: # 611016) (JT: # 611020 x 2) • Rear Lower (JL: # 611015 x 2) (JT: # 611020 x 2) • Replacement Tool Kit (# 1952900)
