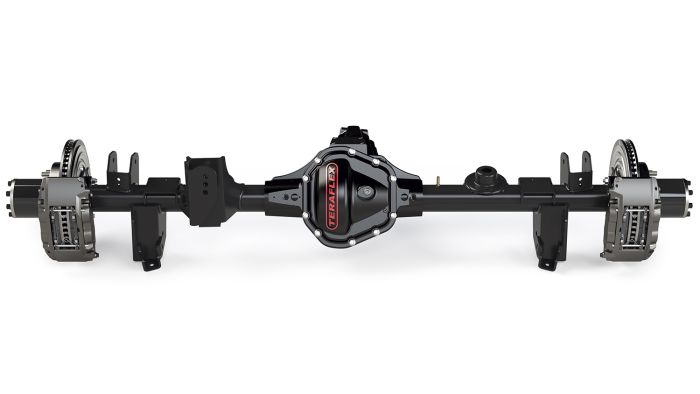

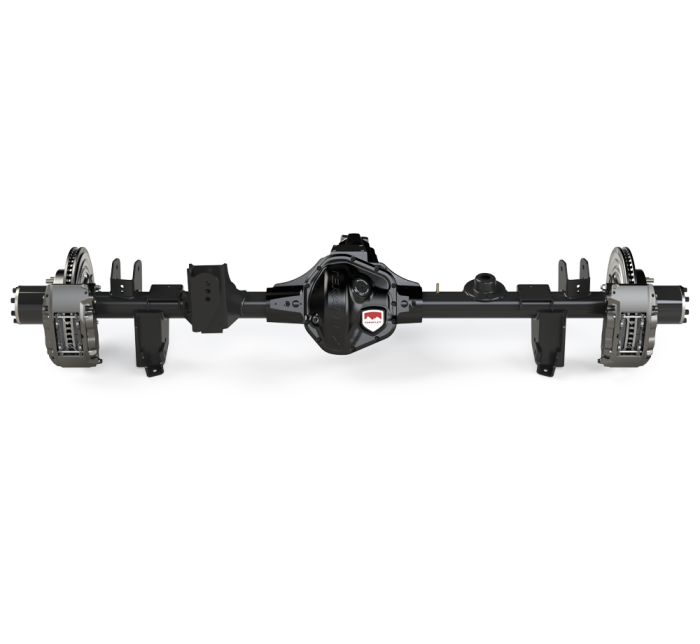

JL: 70" CRD60 HD Rear Axle with Full-Float (0-6" Lift).

The Tera CRD60 HD Rear Axle Assembly with Full-Float includes full-float outer axles Super 60 bearings inner axle shafts and sensors. Add your choice of ring & pinion gear ratio locker and carrier. TeraFlex Tera CRD60 HD Rear Axle Housings are perfect for replacing bent broken or damaged axles in JL Wrangler/Unlimited and JT Gladiator vehicles including Rubicon models. Can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axle's weak areas.

The exclusive Constant Radius Design (CRD) provides high ground clearance that is unaffected by pinion angle adjustments. Compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring & pinion strength. Our heavy-duty axle housings feature smooth profile surfaces axle tubes all necessary mount brackets control arm bushings and more!

Fitment and Installation Notes

• - Extreme duty full-float design
• - 3.25" O.D. x 0.375" wall DOM axle tube for superior strength vs. weight
• - 70" WMS-WMS and 8x6.5" wheel bolt pattern
• - Fixed spindle mount hub assembly
• - Tera CRD60 specific high-pinion rear axle housing design
• - Includes 1350 series pinion yoke
• - 35-spline inner and outer axle shafts
• - HD bearing caps increase rigidity and reduce ring & pinion distortion
• - Constant Radius Design (CRD) provides maximum ground clearance regardless of pinion angle
• - Built-in skimmer cuts ring gear oil halo and forces it into the pinion bearings
• - Outer pinion bearing pocket features a renewable oil reservoir that sends cool oil to the pinion bearing
• - Oversized outer pinion bearing handles increased torque and high-load conditions
• - High-capacity housing holds maximum amount of oil
• - Pre-installed inner axle seals
• - Ductile cast iron housing with increased rib gussets
• - HD ductile iron differential cover with increased cover mounting area
• - Integrated lower control arm skid plates
• - High-flow oil passages
• - Reinforced rear track bar mount with multiple mounting locations
• - UV protected triple-stage powder coat for corrosion resistance
• - 1/4"-thick CNC laser cut axle brackets for extreme strength
• - Pre-installed upper control arm bushings
• - Proper pinion angle and raised track bar bracket for lifted JL applications
• - Pre-tapped hole on spring perch for bump stop extensions
• - Pre-drilled holes for limit straps and lower spring retainers
• - Retains all JT ESP, ABS, and speedometer sensor capability
• - 100% engineered, designed, and built in the USA with new components
• - 1-Year/Unlimited Mileage Warranty
• - Fitment: Fits:
• - Fitment: JL Wrangler (2-door)
• - Fitment: JL Wrangler Unlimited (4-door)
• - Fitment: 0-6" Lift
• - Fitment: Specs:
• - Fitment: WMS-WMS: 70"
• - Fitment: Axle Tube: 3.25" x 0.375"
• - Fitment: Wheel Bolt Pattern: 8x6.5"
• - Fitment: Gear Ratio: NA
• - Height: 20.75
• - Installation Time: 8 Hours (No R&P) / 6 Hours (Geared)
• - Length: 72.25
• - Product Image Size: Default
• - Note: Below is a list of Requirements & Recommendations as budget and build preference allows.
• - Note: Optimize your setup by upgrading your steering system with our heavy-duty steering components. The factory steering system may also be reused.
• - Note: HD Forged Drag Link Kit (0-6" Lift) (# 1863920).
• - Note: HD Chromoly Tie Rod Kit (0-6" Lift) (# 1863910) - included in our Tera60 HD Front Axle Assemblies.
• - Note: REQUIRES adjustable control arms for caster angle adjustments.
• - Note: JL Options:
• - Note: Long Control Arm & Bracket Kit - 8-Arm (3-6" Lift) (Alpine IR: JL2: # 1310512 or JL4: # 1310510) (Alpine: JL2: # 1316012 or JL4: # 1316010).
• - Note: Short Control Arm Kit - 8-Arm (0-4.5" Lift) (Alpine IR: # 1416510 or Alpine: # 1416610).
• - Featured: No
• - Width: 24
