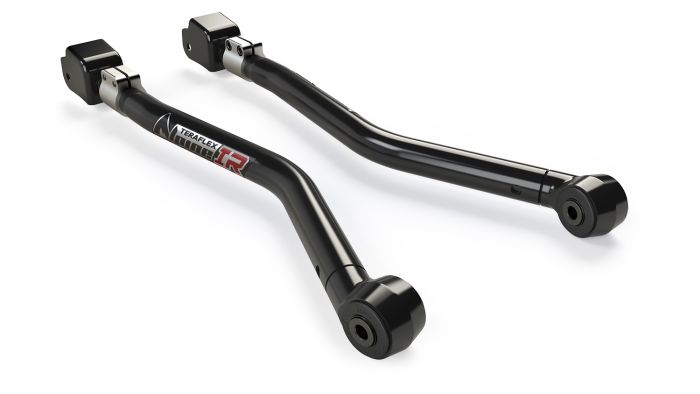

TeraFlex JL / JT: Alpine IR Long Arms and Long Arm Brackets (NOT INCLUDED) provide complete alignment adjustability and dependability for maximum performance on JL Wrangler/Unlimited and JT Gladiator models with 3-6'' lifts.
Our innovative, maintenance-free IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping to improve on- and off-road ride quality and performance.
MUST be used with Long Arm Bracket Kit (JL 2dr: # 1958002) (JL 4dr: # 1958000) (JT: # 1968000) ''" NOT INCLUDED.
Can be added to any existing suspension lift.

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product color=5476,features_benefits=Alpine IR Control Arms (Short / Long):
- Innovative, maintenance-free IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping to improve on- and off-road ride quality and performance
JL / JT: Long Control Arms (Alpine/IR) and Long Arm Brackets:
- Adjustable Long Control Arms and Long Arm Brackets (NOT INCLUDED) balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3-6'' lift kits
- Long Control Arms are constructed from durable 42mm x 4mm (front upper) or 50mm x 5mm (front lower, rear upper, rear lower) wall DOM tube for maximum strength
- On higher lifts, bolt-on Long Arm Brackets (NOT INCLUDED) reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during extreme droop and shock load transferred through the Long Control Arms
- Long Arm Brackets are gusseted and reinforced for superior strength w/ reduced NVH compared to other long arm kits
- Long Arm Brackets feature a premium triple-stage powder coating that provides superior durability and corrosion resistance
- Front Long Arm Suspension Crossmember (NOT INCLUDED) provides additional strength
- Install and drive simple bolt-on installation ''" no welding required
Adjustable Control Arms (all):
- Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
- Full range of movement will not restrict articulation or flex off-road
- Zero maintenance forged threaded joints for smooth quiet flex
- Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
- Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
- TeraFlex Lifetime Warranty against defects,fitment_info=Vehicle(s):
- JL Wrangler (2-door)
- JL Wrangler Unlimited (4-door)
- JT Gladiator (pickup)
Specs:
- Lift Height: 3-6''
Control Arm Specs:
- Tube Diameter & Wall: 42mm x 4mm
- Factory Length: 20-1/4''
- Min. Length: 27-3/4''
- Max. Length: 28-7/8''
- Bolt - Axle: 12mm
- Bolt - Frame: 14mm
- IR Bushing - Axle: 611018
- IR Bushing - Frame: 611016,height=3,installation_time=2 Hours,length=31,product_image_size=Default,product_notes=- Adjustable Long Control Arms (JL: Alpine: # 1316005) (JL: Alpine IR: # 1310505) (JT: Alpine: # 1317005) (JT: Alpine IR: # 1318005) MUST be used w/ Long Arm Bracket Kit (JL 2dr: # 1958002) (JL 4dr: # 1958000) (JT: # 1968000) ''" NOT INCLUDED.
- REQUIRES cutting/removal of factory control arm bracketry to install Long Arm Brackets.
- JT: Long Arm Brackets (# 1968000) are NOT COMPATIBLE w/ all rock sliders. May require disassembly for install.
- Alignment REQUIRED.
- Available RockGuard Transmission Skid Plate & Long Arm Crossmember Reinforcement (JL / JT: # 4609100) protects your transmission and reinforces your Front Long Arm Suspension Crossmember. RECOMMENDED.
IR Bushing:
- Kit - 8 Long Arms (JL: # 1952801)
- Front Upper (JL / JT - Axle: # 611018) (JL / JT - Frame: # 611016)
- Front Lower (JL / JT: # 611020 x 2)
- Rear Upper (JL - Axle: # 611015) (JL - Frame: # 611016) (JT: # 611020 x 2)
- Rear Lower (JL: # 611015 x 2) (JT: # 611020 x 2)
- Replacement Tool Kit (# 1952900),size=5518,sw_featured=No,width=6
