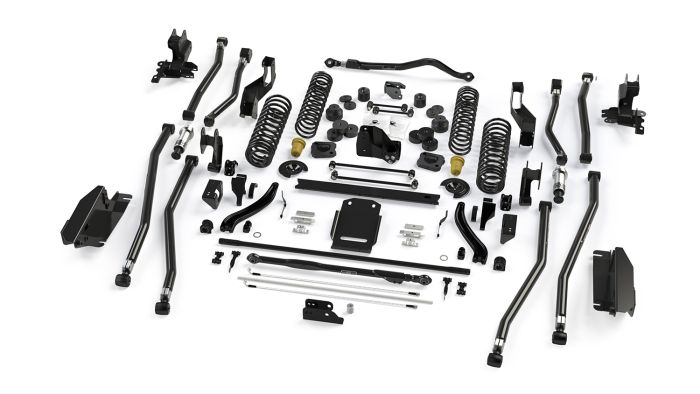

JT: 4.5” Alpine RT4 Long Arm Extended-Travel Suspension System – No Shocks

Alpine RT4: • Lift Height: 4.5” • Sport/Overland Fenders: 33–37” Tires • Rubicon/Mojave Fenders: 35–39” Tires • Aftermarket Fenders: 39”+ Tires RT Long Arm Extended-Travel: • Adjustable Alpine IR Long Arms & Brackets balance front caster angle and pinion angles as well as optimize rear pinion angles and tune anti-squat geometry for proper suspension alignment on 3–6” lift kits • Constructed from durable 42mm x 4mm or 50mm x 5mm wall DOM tube for maximum strength • On higher lifts, bolt-on Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during extreme droop as well as shock load transferred through the Long Control Arms • Brackets are gusseted and reinforced for superior strength w/ reduced NVH • Brackets feature a triple-stage powder coating that provides superior durability and corrosion resistance • Long Arm Suspension Crossmember and RockGuard Transmission Skid Plate provide additional strength • Driveshaft Lowering Spacers, Forged ST Sway Bar, and Extended-Travel Accessory Kit safely provide 16” of rear suspension travel • Rear Coil Spring Retainers prevent the springs from unseating during full suspension travel Roque Trail: • Delivers true Rogue Trail (RT) performance • Dependable performance w/ zero worries • Positive, responsive handling w/ reduced NVH • Innovative, maintenance-free IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping to improve on- and off-road ride quality and performance • HD Forged Adjustable Track Bars and Track Bar Brackets improve steering response, center axles to optimize vehicle roll center, and reduce body roll for unsurpassed handling • SpeedBump and Progressive Bump Stops provide progressive compression during high-speed suspension movement • Features Front Sway Bar Quick Disconnects • Full range of movement for off-road flex and articulation • TeraFlex Limited Lifetime Warranty against defects

Vehicle(s): • JT Gladiator (pickup) Specs: • Lift Height: 4.5” Max Tire Diameter: • Sport/Overland Fenders: 33” (w/ 2” front and 1” rear bump stops/strike pad extensions/shims) • Sport/Overland Fenders: 35” (w/ 3” front and 2.5” rear bump stops/strike pad extensions/shims) • Sport/Overland Fenders: 37” (w/ 4” front and 3.5” rear bump stops/strike pad extensions/shims) • Rubicon/Mojave Fenders: 35” (w/ 2” front and 1” rear bump stops/strike pad extensions/shims) • Rubicon/Mojave Fenders: 37” (w/ 2” front and 2.5” rear bump stops/strike pad extensions/shims) • Rubicon/Mojave Fenders: 39” (w/ 4” front and 3” rear bump stops/strike pad extensions/shims)

• REQUIRES aftermarket wheels w/ 4.75” backspacing or less – or 1.75” Wheel Offset Adapter Pairs (# 1057000 x 2) for stock wheels – NOT INCLUDED. • Models with plastic bumpers REQUIRE removal of bumper-to-fender wind deflector/splash guards to fit 35” or larger tires. • Sport/Overland fenders REQUIRE 3” Front and 2.5” Rear Bump (INCLUDED) to fit 35” tires. • Sport/Overland fenders REQUIRE 4” Front and 3.5” Rear Bump to fit 37” tires. REQUIRES additional components. • Rubicon/Mojave fenders REQUIRE 2” Front and 2.5” Rear Bump (INCLUDED) to fit 37” tires. • Rubicon/Mojave fenders REQUIRE 4” Front and 3” Rear Bump to fit 39” tires. REQUIRES additional components. • REQUIRES cutting/removal of factory control arm bracketry to install Long Arm Brackets. • Alignment REQUIRED. • REQUIRES longer shocks (NOT INCLUDED) – Falcon Performance Shocks recommended.
