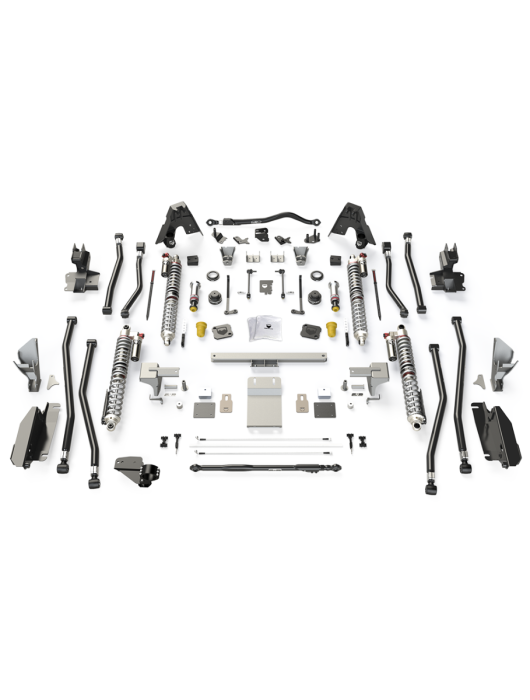

JT: Alpine RT Coilover Suspension System.

The TeraFlex Alpine RT Coilover Suspension has been upgraded to incorporate all the essential bolt-on Coilover frame brackets and mounts necessary for the installation of a full set of JT Specific Falcon Coilover Shocks. This bracketry, along with the Coilover Shocks, form a comprehensive suspension system that embodies the performance, ride quality, and handling characteristics for which TeraFlex has long been renowned.

The TeraFlex JT Long Arm Coilover Suspension System combines Gladiator-specific springs with tuning perfected through thousands of hours of real-world testing. This provides a true bolt-and-go high-performance experience, offering 3.3 Series Fast Adjust custom tunability, 1.25" ride height adjustability, and 16 inches of rear suspension travel.

Fitment and Installation Notes

• - Features Benefits:
• - Falcon Coilover Jeep shocks
• - 13" stroke, Front/Rear with 16" Rear JT wheel Travel
• - Adjustable crossover for True Dual-Rate
• - 4.5" lift, +/
• - 1.25" adjustability using quick adjust snap rings
• - 23" articulated suspension movement, no limit straps required to protect the shocks
• - Coated, Booted and Sealed, oversized Gimbal Lock Bearings mount and maintain shock orientation
• - JT specific springs, and shock tuning
• - Falcon 3.3 series Quick Adjust tuning
• - Designed for standard 3.0" coils
• - Refreshed Speed Bumps silently provide 4X the bottoming resistance
• - 1-year warranty
• - TeraFlex Coilover RT Suspension
• - RT4 Long Arm Suspension for control, Flex, and stability
• - Bolt on 1/4" laser cut reinforced Coilover brackets
• - Adjustable Alpine IR Long Arms & Brackets balance front caster angle and pinion angles as well as optimize rear pinion angles and tune anti-squat geometry for proper suspension alignment on 3-6" lift kits
• - Constructed from durable 42mm x 4mm (front upper) or 50mm x 5mm (front lower, rear upper, rear lower) wall DOM tube for maximum strength
• - Bolt-on Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during extreme Coilover Shock droop as well as shock load transferred through the Long Control Arms
• - Brackets are gusseted and reinforced for superior strength with reduced NVH compared to other long arm kits
• - Brackets feature a premium triple-stage powder coating that provides superior durability and corrosion resistance
• - Long Arm Suspension Crossmember and RockGuard Transmission Skid Plate / Long Arm Crossmember Reinforcement provide additional strength
• - HD Forged Adjustable Track Bars and Track Bar Bracket(s) improve steering response, center axles to optimize vehicle roll center, and reduce body roll for improved handling
• - Features Front Sway Bar Quick Disconnects
• - Full range of movement for off-road flex and articulation
• - Install and drive simple bolt-on installation - no frame welding required
• - TeraFlex Limited Lifetime Warranty against defects
• - Patented design
• - Fitment Info:
• - All JT Gladiator Rubicon and Mojave models
• - height 18
• - installation_time 30 Hours
• - length 48.
• - Product notes:
• - REQUIRES wheels with 4.75" backspacing or less or 1.75" Wheel Offset Adapter Pair (# 1057000 x 2) for stock wheels
• - NOT INCLUDED.
• - Requires Front driveline 'double cardon" upgrade due to increased travel
• - Models with plastic bumpers REQUIRE removal of bumper-to-fender wind deflector/splash guards
• - REQUIRES cutting/removal of factory control arm bracketry and spring buckets to install
• - Optimized rear tune for the complexities of a 40" bed mounted spare tire
• - HD Axle lower control arm relocation brackets require welding
• - Alignment REQUIRED
