JT: Extended-Travel System (1.5"+ Rear Lift).

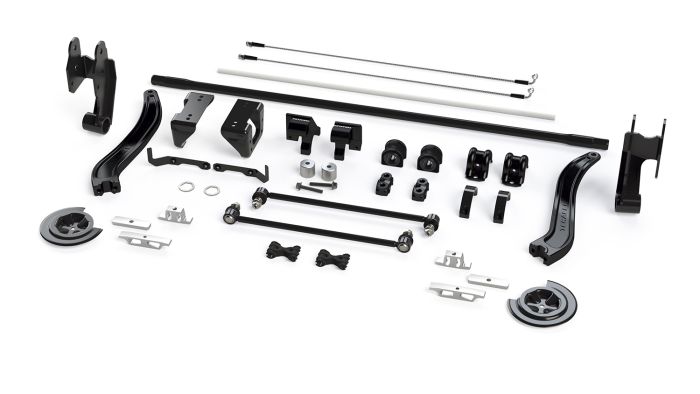

This complete system combines our standard Extended-Travel Accessory Kit (# 4834100) with our Rear Upper Control Arm Extended-Travel Axle Bracket Kit (# 1938225), Rear Forged ST Sway Bar Kit (# 1774700), 1.5" Rear Driveshaft Lowering Kit (# 4801000), Rear Upper & Rear Lower Coil Spring Retainer Kit (# 4954000), and Rear Brake Line Anchor Kit (# 1101455).

Our standard Extended-Travel Accessory Kit includes 33" Rear Stainless Steel Braided Brake Line Kit (# 4356100), 16" PVC Breather Hose, ABS Wire Extension Harnesses, 2" Aluminum Parking Brake Cable Spacers.

Fitment and Installation Notes

• - Extended-Travel System:
• - Extended-Travel System safely provides 16" of rear suspension travel
• - For use with extended-travel Falcon Shocks (3.5-4.5" Lift)
• - Extended-Travel Axle Bracket Kit
• - Rear Upper Control Arms:
• - Eliminates pinion dive during full droop with extended-travel Falcon Shocks (3.5-4.5" Lift)
• - Corrects rear suspension geometry and improves handling and ride quality on vehicles with 1"+ rear lift
• - Relocates rear upper control arm axle mounts
• - Bolt-on Extended-Travel Axle Brackets install between factory axle mounts and rear upper control arms
• - Welded and powder coated steel brackets
• - High-quality OEM grade coatings on all components to prevent rust and corrosion
• - Forged ST Sway Bar Kit
• - Rear:
• - Allows for up to 16" of wheel travel
• - Relocates the sway bar from the axle to the frame to prevent damage to the sway bar
• - Provides same stability as factory rear sway bar
• - Requires a minimum of 2" rear bump stop
• - Forged and heat-treated 4140 Rear Sway Bar with hex head design
• - Features curved Forged Sway Bar Arms for clearance through full suspension movement
• - OEM-style Teflon-coated Sway Bar Bushings for reduced noise and long life
• - Includes Rear Sway Bar Links, Frame Mounting Brackets, and extruded aluminum Axle Mounting Brackets
• - 1.5" Driveshaft Lowering Kit
• - Lowers the rear driveshaft center support mount to improve driveshaft angles during full droop
• - Coil Spring Retainer Kit
• - Rear Upper & Rear Lower:
• - Rear Coil Spring Retainers prevent the springs from unseating during full suspension travel
• - Brake Line Anchor Kit
• - Clamps around rear sway bar link and brake line for easy installation
• - Anchors can be positioned for best fit and clearance
• - Molded rubber construction safely and securely retains brake line
• - Molded rubber also features a recessed channel for vehicle speed sensor wire
• - Fitment: JT Gladiator (pickup) with 1.5"+ Rear Lift
• - Height: 14
• - Length: 52
• - Product Image Size: Default
• - Note: REQUIRES aftermarket wheels with 4.75" backspacing or less - or 1.75" Wheel Offset Adapter Kit (# 1057000) for stock wheels - NOT INCLUDED.
• - Note: Does NOT work with the 13" Rear Sway Bar Link Kit (# 1774300).
• - Note: REQUIRES a minimum of 2.5" Rear Bump Stop/Strike Pad Extensions/Shims.
• - Note: Sport/Overland fenders REQUIRE 3" Front and 2.5" Rear Bump Stop/Strike Pad Extensions/Shims (NOT INCLUDED) to fit 35" tires.
• - Note: Rubicon/Mojave fenders REQUIRE 2" Front and 2.5" Rear Bump Stop/Strike Pad Extensions/Shims (NOT INCLUDED) to fit 37" tires.
• - Featured: No
• - Width: 18
