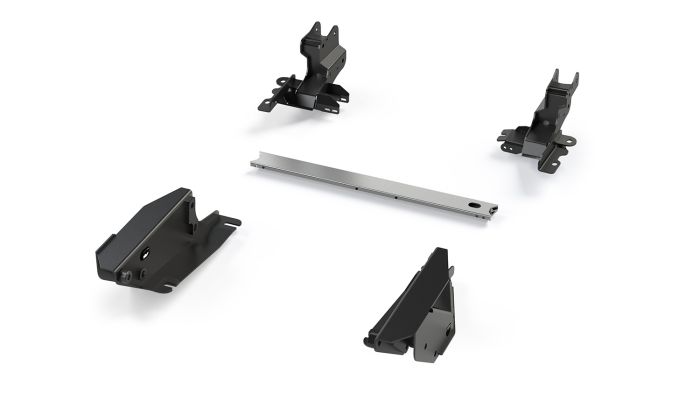

JT: Long Arm Bracket Kit (3-6" Lift).

CAD-engineered TeraFlex JT: Long Arm Brackets are designed for maximum strength. By streamlining the frame-end mounting points, we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance. Front Long Arm Suspension Crossmember provides additional strength. Can be added to an existing suspension lift.

CAD-engineered TeraFlex JT: Long Arm Brackets are designed for maximum strength. By streamlining the frame-end mounting points, we were able to incorporate both upper and lower mounts in each bracket. Suspension Crossmember adds strength.

Fitment and Installation Notes

• - Color: 12mm X 100
• - JL / JT: Long Control Arms (Alpine/IR) and Long Arm Brackets:
• - Adjustable Long Control Arms (NOT INCLUDED) and Long Arm Brackets balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3-6" lift kits
• - Long Control Arms (NOT INCLUDED) are constructed from durable 42mm x 4mm (front upper) or 50mm x 5mm (front lower, rear upper, rear lower) wall DOM tube for maximum strength
• - On higher lifts, bolt-on Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during extreme droop and shock load transferred through the Long Control Arms
• - Long Arm Brackets are gusseted and reinforced for superior strength with reduced NVH compared to other long arm kits
• - Long Arm Brackets feature a premium triple-stage powder coating that provides superior durability and corrosion resistance
• - Front Long Arm Suspension Crossmember provides additional strength
• - Install and drive simple bolt-on installation - no welding required
• - Adjustable Control Arms (all):
• - Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
• - Full range of movement will not restrict articulation or flex off-road
• - Zero maintenance forged threaded joints for smooth quiet flex
• - Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
• - Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
• - TeraFlex Lifetime Warranty against defects
• - Fitment: Vehicle(s):
• - Fitment: JT Gladiator (pickup)
• - Fitment: Specs:
• - Fitment: Lift Height: 3-6"
• - Height: 10
• - Installation Time: 4 Hours
• - Length: 56
• - Product Image Size: Default
• - Note: Long Arm Brackets (JT: # 1968000) MUST be used with adjustable Long Control Arms (JT: Alpine: # 1317005) (JT: Alpine IR: # 1318005) - NOT INCLUDED.
• - Note: REQUIRES cutting/removal of factory control arm bracketry to install Long Arm Brackets.
• - Note: JT: Long Arm Brackets (# 1968000) are NOT COMPATIBLE with all rock sliders. Some rock sliders may require disassembly for install.
• - Note: Alignment REQUIRED.
• - Note: Available RockGuard Transmission Skid Plate & Long Arm Crossmember Reinforcement (JL / JT: # 4609100) protects your transmission and reinforces your Front Long Arm Suspension Crossmember. RECOMMENDED, BUT NOT REQUIRED.
• - Size: 2XL
• - Featured: No
• - Width: 31

installation_video=https://www.youtube.com/embed/eYrjIGhmCDM
