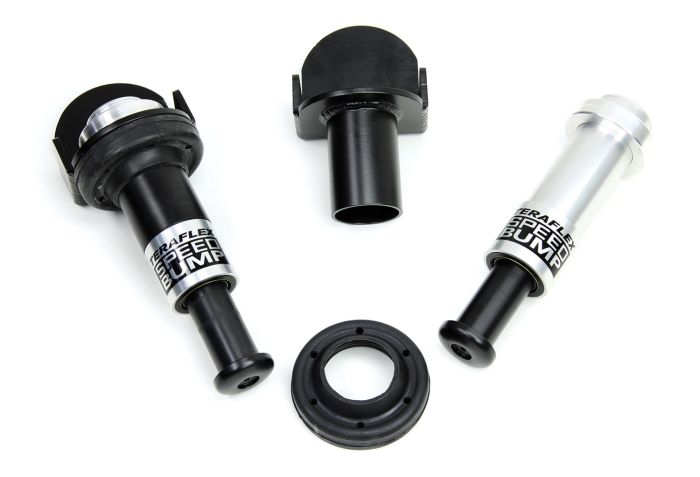

TJ: 3"-Stroke SpeedBump Bump Stop Kit - Rear (4-6" Lift)
TJ: 3"-Stroke SpeedBump Bump Stop Kit - Rear (4-6" Lift).
- - TeraFlex Bump Stop Kits provide additional protection to your suspension over the factory bump stops, which can deform during hard compression and suspension movement.
- - TJ specific tuned for high-speed performance
- - Performance-tuned closed-cell nitrogen charged microcellular polyurethane technology
- - Absorbs large impact energy progressively during compression to prevent bent axle tubes
Fitment and Installation Notes
- - These maintenance-free bump stops don't require any adjustment or tuning.
- - Rear bump stops require cutting and welding.
- - Must remove the rear upper spring bracket and weld the new bracket in its place.
- - Cutting and welding REQUIRED - bracket replaces factory rear upper spring bracket.
DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. TeraFlex is NOT responsible for any damage or failure resulting from improper installation.Estimated Labor Time: 5 hours (All 4)Installation Effort: 5 hours (All 4)Have a certified mechanic do it for you!
Description
TJ: 3"-Stroke SpeedBump Bump Stop Kit - Rear (4-6" Lift).
- - TeraFlex Bump Stop Kits provide additional protection to your suspension over the factory bump stops, which can deform during hard compression and suspension movement.
- - TJ specific tuned for high-speed performance
- - Performance-tuned closed-cell nitrogen charged microcellular polyurethane technology
- - Absorbs large impact energy progressively during compression to prevent bent axle tubes
Fitment and Installation Notes
- - These maintenance-free bump stops don't require any adjustment or tuning.
- - Rear bump stops require cutting and welding.
- - Must remove the rear upper spring bracket and weld the new bracket in its place.
- - Cutting and welding REQUIRED - bracket replaces factory rear upper spring bracket.
Details
TJ: 3"-Stroke SpeedBump Bump Stop Kit - Rear (4-6" Lift).
Our innovative bump stops meet the demand of high-performance driving. Composite construction combined with a progressive nature reduces suspension compression impacts and harshness when bottoming out whether driving off-road or on poorly maintained highways. Reducing this impact increases driver ability to maintain vehicle control as well as reduces the risk of bending an axle housing tube.
SpeedBump Bump Stops feature a self-lubricating Delrin acetal resin polymer shaft to withstand 1000s of continuous cycles without wear or abrasion. The external shaft seal also prolongs shaft life by wiping and cleaning the shaft to prevent contaminants from entering the SpeedBump housing.
Fitment and Installation Notes
- TeraFlex Bump Stop Kits provide additional protection to your suspension over the factory bump stops, which can deform during hard compression and suspension movement. Bump stop length is crucial for preventing vehicle damage.
- TeraFlex Bump Stop Kits provide additional protection to your suspension over the factory bump stops which can deform during hard compression and suspension movement.
- These maintenance-free bump stops don't require any adjustment or tuning.
- Proper bump stop length and/or bump stop strike pad height is crucial for preventing damage to axle housing tubes suspension components shock absorbers and fenders.
- Rear bump stops require cutting and welding. Must remove the rear upper spring bracket and weld the new bracket in its place.
- Cutting and welding REQUIRED - bracket replaces factory rear upper spring bracket.
Installation
DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. TeraFlex is NOT responsible for any damage or failure resulting from improper installation.
Have a certified mechanic do it for you!
F&B
- - Color: 12mm X 100
- - TJ specific tuned for high-speed performance
- - Performance-tuned closed-cell nitrogen charged microcellular polyurethane technology
- - Absorbs large impact energy progressively during compression to prevent bent axle tubes
- - Prevents damage to suspension components, shock absorbers, and fenders
- - Quiet movement and function (no pad-slap clunk)
- - Maintains progressive nature during all conditions
- - Will not fade or dissipate under extended heavy use
- - Unaffected by temperature extremes - retains flexibility in thermal or subzero temps
- - Resistant to all types of environmental conditions (mud, salt, sand, dust, etc.)
- - Compatible with all suspension systems that retain factory axle spring mounting locations
- - Maintenance-free, all composite construction
- - Includes OEM rubber spring isolator
- - Patented technology
- - Limited lifetime warranty
- - Fitment: TJ Wrangler (short wheelbase)
- - Fitment: LJ Wrangler Unlimited (long wheelbase)
- - Height: 10
- - Installation Time: 5 hours (All 4)
- - Length: 16
- - Note: Cutting and welding REQUIRED - bracket replaces factory rear upper spring bracket.
- - Size: 2XL
- - Width: 12
