TJ: 4" Suspension System w/ 8 Short Control Arms & 9550 VSS Twin-Tube – RHD

$3,341.99
SKU
1656452

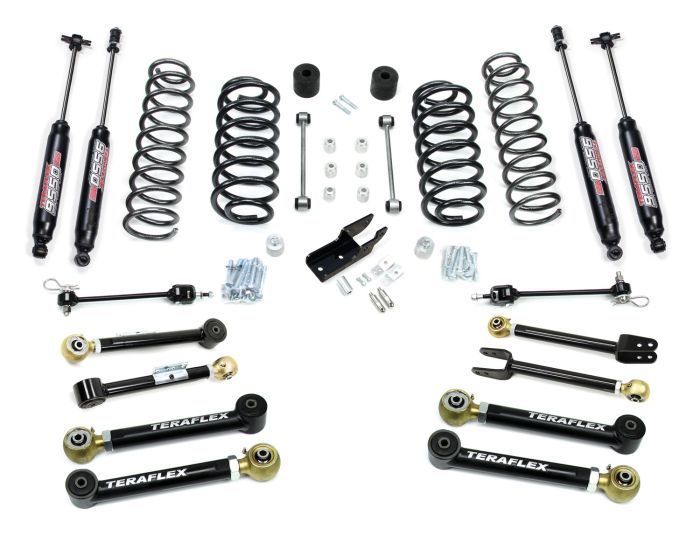

Right-Hand Drive" For Jeepers ready to take their rig to the next level the TeraFlex TJ: 4" Suspension System w/ 8 Short Control Arms delivers everything you need to lift your TJ Wrangler to conquer the most extreme trails and conditions. This kit includes a full set of adjustable Short Control Arms drop pitman arm and rear track bar bracket for maximum adjustability. HD Adjustable Front Track Bar recommended. Every TeraFlex suspension system is engineered with drivability and performance in mind. Properly developed suspension geometry roll center and load tuning ensure that all factory stability controls remain functional and within the parameters that Jeep originally engineered into the vehicle resulting in on-road comfort and handling as well as off-road performance. Not only do TeraFlex kits drive straight but they will crawl over anything to get you there and back! We recommend Falcon Performance Shocks or TeraFlex 9550 VSS Twin-Tube Shocks. These are the only shock absorbers engineered to work with TeraFlex lift coil springs to improve both compression and rebound for optimal vehicle stability. Suspension Systems w/ Short Control Arms are offered with TeraFlex 9550 VSS Twin-Tube Shocks or without shock absorbers. Falcon Series 3.0 Piggyback Shocks are available separately for 3-4" lift heights.

8 hours install time

• TJ Wrangler (short wheelbase) • LJ Wrangler Unlimited (long wheelbase) • Right-Hand Drive • Lift Height: 4" • Max Tire Diameter: 35"
• REQUIRES aftermarket wheels w/ 4.5” backspacing or less – or Offset Wheel Adapters (# 1005200) for stock wheels – NOT INCLUDED. • HD Adjustable Front Track Bar (3-4” Lift) (# 1743022) available separately. Recommended for 3”+ lifts. 4”+ lifts REQUIRE CV-style driveshaft and Extreme Short Shaft Slip Yoke Eliminator Kit (# 4444400) or Short Shaft Slip Yoke Eliminator Kit (# 4444401). Highly recommended for 3” lift. NOT compatible w/ TJ Wrangler/Unlimited Rubicon models • Alignment REQUIRED. • Pro LCG High Steer System (# 1849000) available separately. Recommended for 4”+ lifts. • REQUIRES longer shocks (NOT INCLUDED in base kit) – Falcon Series 3.0 Piggyback Shocks (# 04-01-30-400-304) or TeraFlex 9550 VSS Twin-Tube Shocks (# 1545270) recommended.
