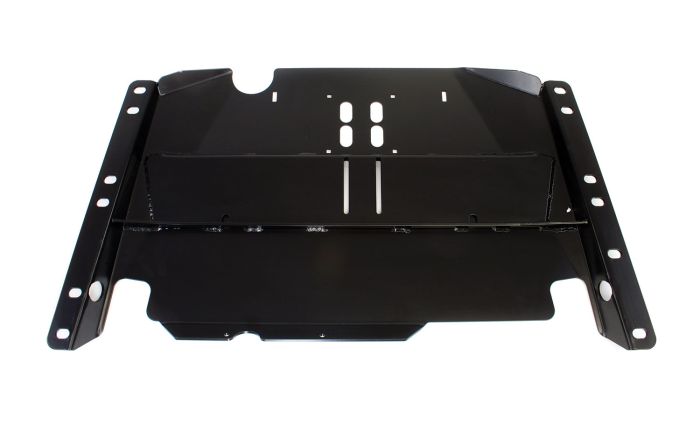

TJ: HD BellyUp Skid Plate Kit
The low-profile TeraFlex TJ: HD BellyUp Skid Plate Kit increases ground clearance by up to 2-1/4" compared to the factory skid plate ''" equivalent to adding 4" larger diameter tires.
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product Description
The low-profile TeraFlex TJ: HD BellyUp Skid Plate Kit increases ground clearance by up to 2-1/4" compared to the factory skid plate ''" equivalent to adding 4" larger diameter tires.
Details
The low-profile TeraFlex TJ: HD BellyUp Skid Plate Kit increases ground clearance by up to 2-1/4" compared to the factory skid plate - equivalent to adding 4" larger diameter tires.
Installation
DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
Have a certified mechanic do it for you!
Additional Information
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product color=12mm X 100,features_benefits=
- Constructed from CNC laser cut and bent 1/4" steel
- Durable black powder coat finish,fitment_info=
- TJ Wrangler (short wheelbase)
- LJ Wrangler Unlimited (long wheelbase)
,height=4,installation_time=3 hours,length=44,product_notes=- Modifications REQUIRED when used w/ Rubicon or Atlas transfer cases.
- Some exhaust adjustment may be necessary.
- REQUIRES some fine tuning and adjustment to eliminate driveshaft vibration.
- REQUIRES a(n Extreme) Short Shaft Kit (# 4444400 & # 4444401).
- A Transfer Case Lowering Kit (1'' drop: # 1900100 & 0.5'' drop: # 1900000) is recommended to decrease the severity of the driveshaft angle that is caused by the HD BellyUp Skid Plate - especially when combined w/ a 4''+ lift kit.
- 1'' Body Lift Kit (Aluminum: # 1942100 & UHMV: # 1942101) is recommended for Rubicon models for proper drive shaft clearance.,size=2XL,width=26
- Constructed from CNC laser cut and bent 1/4" steel
- Durable black powder coat finish,fitment_info=
- TJ Wrangler (short wheelbase)
- LJ Wrangler Unlimited (long wheelbase)
,height=4,installation_time=3 hours,length=44,product_notes=- Modifications REQUIRED when used w/ Rubicon or Atlas transfer cases.
- Some exhaust adjustment may be necessary.
- REQUIRES some fine tuning and adjustment to eliminate driveshaft vibration.
- REQUIRES a(n Extreme) Short Shaft Kit (# 4444400 & # 4444401).
- A Transfer Case Lowering Kit (1'' drop: # 1900100 & 0.5'' drop: # 1900000) is recommended to decrease the severity of the driveshaft angle that is caused by the HD BellyUp Skid Plate - especially when combined w/ a 4''+ lift kit.
- 1'' Body Lift Kit (Aluminum: # 1942100 & UHMV: # 1942101) is recommended for Rubicon models for proper drive shaft clearance.,size=2XL,width=26
