21+ Bronco Pneumatic Dual-Rate Sway Bar
If you plan to use your Bronco off-road and like comfort and articulation, a Sway Bar Disconnect isn’t optional. This Pneumatic Dual-Rate Sway Bar delivers stable road manners and comfortable trail performance with the push of a button.
Frequently Bought Together
Check items to add to the cart or
DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. TeraFlex is NOT responsible for any damage or failure resulting from improper installation.Estimated Labor Time: 2 HoursInstallation Effort: 2 HoursHave a certified mechanic do it for you!
Description
If you plan to use your Bronco off-road and like comfort and articulation, a Sway Bar Disconnect isn’t optional. This Pneumatic Dual-Rate Sway Bar delivers stable road manners and comfortable trail performance with the push of a button.
Details
The TeraFlex Bronco Pneumatic Dual-Rate Sway Bar delivers improved handling and articulation in one clean, simple system. Designed to replace either the factory hydraulic sway bar or the factory single-rate bar, this pneumatic unit provides reliable performance without the complexity of OE components.
If you’ve ever had to crawl under your Bronco and lay in the dirt to disconnect a sway bar, you already understand why a simple in-cab, push-button release matters. Trail capability shouldn’t require getting dirty before the trail even starts, and then again before hitting the road.
Using our proven dual-rate design, this sway bar delivers confident control on pavement and controlled articulation off-road. Built to fit all Bronco trims, it’s a straightforward upgrade for drivers who want durability, simplicity, and predictable performance.
If you’ve ever had to crawl under your Bronco and lay in the dirt to disconnect a sway bar, you already understand why a simple in-cab, push-button release matters. Trail capability shouldn’t require getting dirty before the trail even starts, and then again before hitting the road.
Using our proven dual-rate design, this sway bar delivers confident control on pavement and controlled articulation off-road. Built to fit all Bronco trims, it’s a straightforward upgrade for drivers who want durability, simplicity, and predictable performance.
Kit Components
Vehicle Fitment
2021+ Ford Bronco (all trims except Raptor)
Product Notes

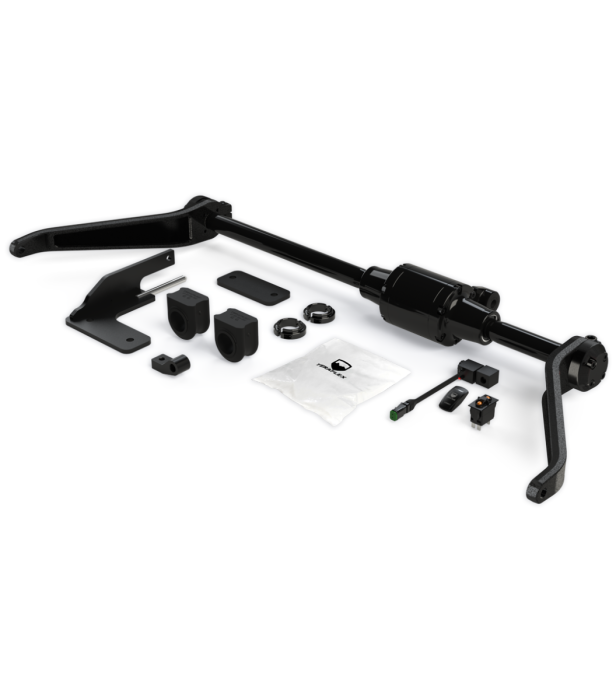

Pneumatic sway bar assembly with links
Mounting hardware included
Requires small onboard air compressor
Recommended 100psi. 50 minimum.
2021+ Ford Bronco (all trims except Raptor)
Product Notes
Pneumatic sway bar assembly with links
Mounting hardware included
Requires small onboard air compressor
Recommended 100psi. 50 minimum.
Installation
DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. TeraFlex is NOT responsible for any damage or failure resulting from improper installation.
Have a certified mechanic do it for you!
F&B
-Pneumatic dual-rate sway bar system
-In-cab push-button disconnect operation
-Forged arms
-4140 chromoly large-diameter torsion bar tuned for stable highway driving
-Lighter trail-rate sway bar remains active for side-hill and off-camber control
-Trail rate delivers approximately ¼ the torsional resistance of street mode
-Full articulation when heavy street bar is disconnected
-Quiet bushing-mounted brackets reduce noise and vibration
-12mm arm clamp bolt eliminates spline movement and prevents wear or body roll
-Indexed internal alignment dogs ensure proper re-engagement
-No need to level vehicle to re-engage street mode
-Direct bolt-on to factory sway bar mounting locations
-Defaults to connected street mode for safety
-In-cab push-button disconnect operation
-Forged arms
-4140 chromoly large-diameter torsion bar tuned for stable highway driving
-Lighter trail-rate sway bar remains active for side-hill and off-camber control
-Trail rate delivers approximately ¼ the torsional resistance of street mode
-Full articulation when heavy street bar is disconnected
-Quiet bushing-mounted brackets reduce noise and vibration
-12mm arm clamp bolt eliminates spline movement and prevents wear or body roll
-Indexed internal alignment dogs ensure proper re-engagement
-No need to level vehicle to re-engage street mode
-Direct bolt-on to factory sway bar mounting locations
-Defaults to connected street mode for safety
